63 99 271 Replacing light bulb for front left or right turn indicator

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Press clips together and remove bulb receptacle.

Turn and pull out bulb.

CAUTION: Do not take hold of glass part of bulb with bare fingers.
Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

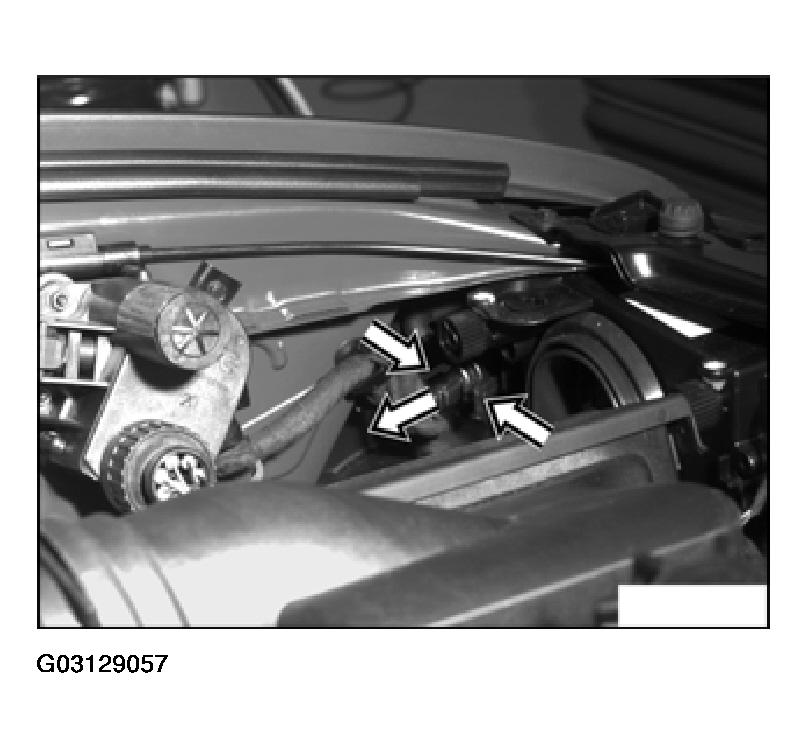

Fig 1: Removing Bulb Receptacle
G03129057Courtesy of BMW OF NORTH AMERICA, INC.
