63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Remove fog lamp.

Up to 08/2000:

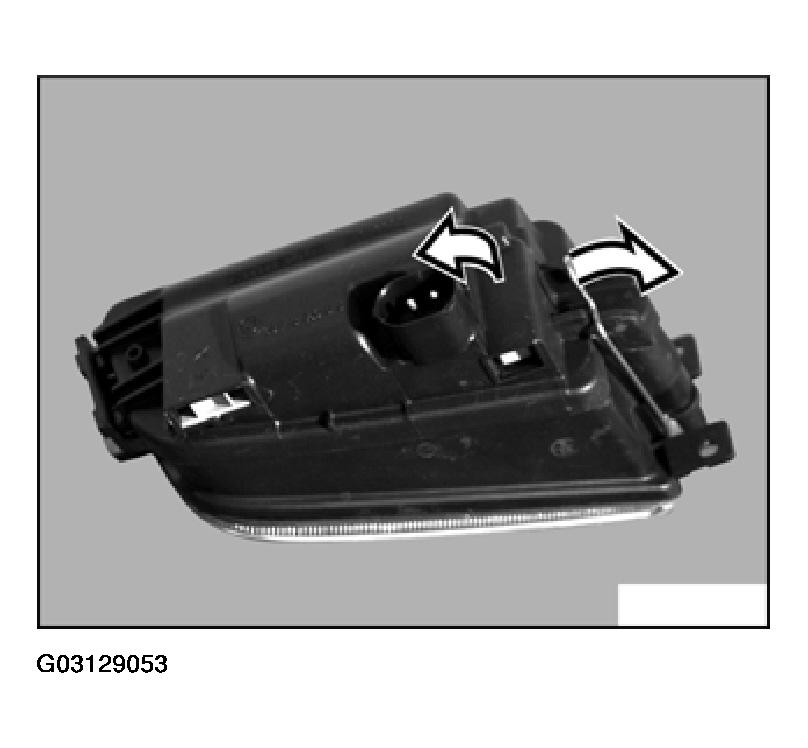

Open retaining bracket and fold up cover.

Fig 1: Opening Retaining Bracket & Fold Up Cover

Courtesy of BMW OF NORTH AMERICA, INC.

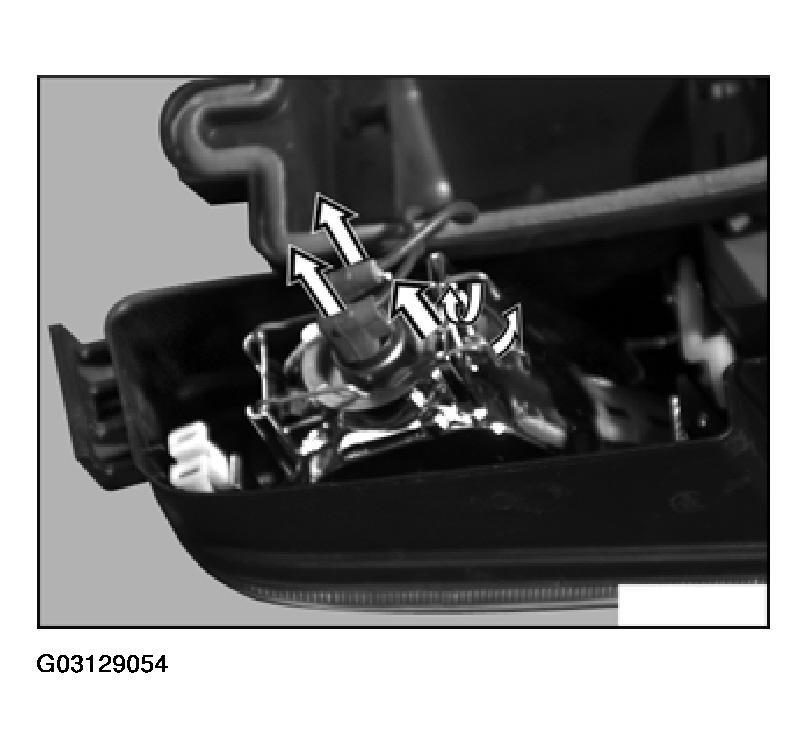

Disconnect plug connection, unhook clip and take out bulb inside.

Fig 2: Disconnecting Plug Connection Unhooking Clip & Taking Out Bulb Inside

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

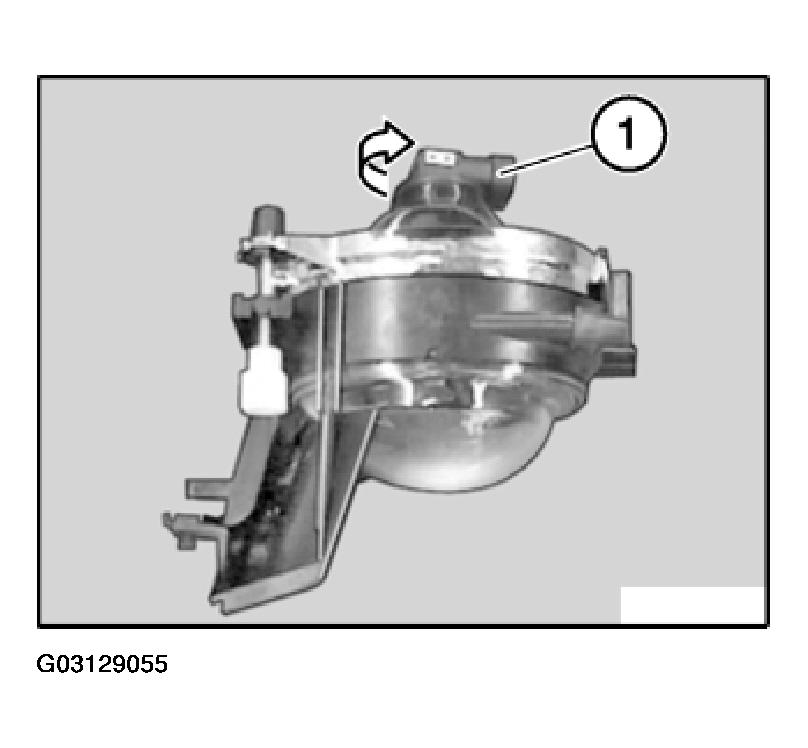

Turn bulb holder (1) in direction of arrow and remove. Remove bulb inside from bulb holder (1).

Fig 3: Removing Bulb Inside From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb.
