63 99 131 Replacing bulb for left or right front parking light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

Up to 09/2000:

Twist lamp socket and remove.

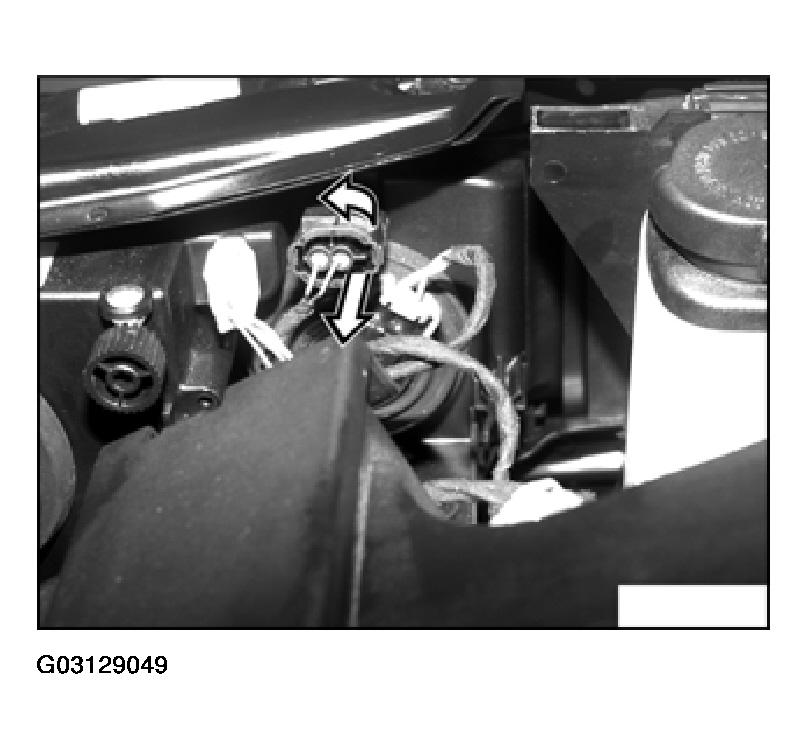

Fig 1: Removing Lamp Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb holder with large lug facing upwards into housing.

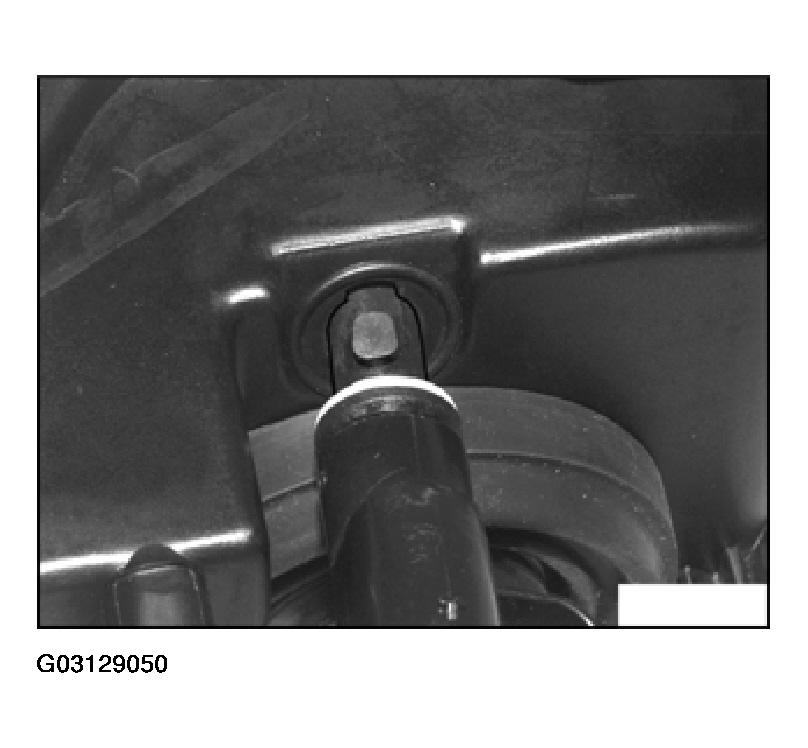

Fig 2: Inserting Bulb Holder With Large Lug Facing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb from bulb holder.

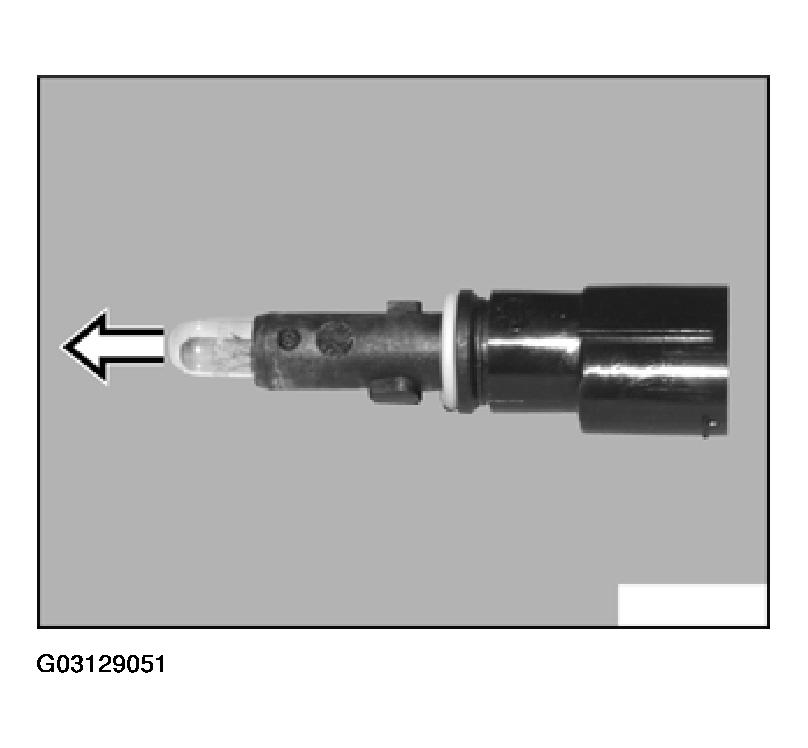

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

Disconnect plug connection (1).

Turn holder with side-marker lamp (2) in direction of arrow and remove.

Installation:

Make sure sealing ring is correctly seated.

All:

Installation:

Note type of bulb.

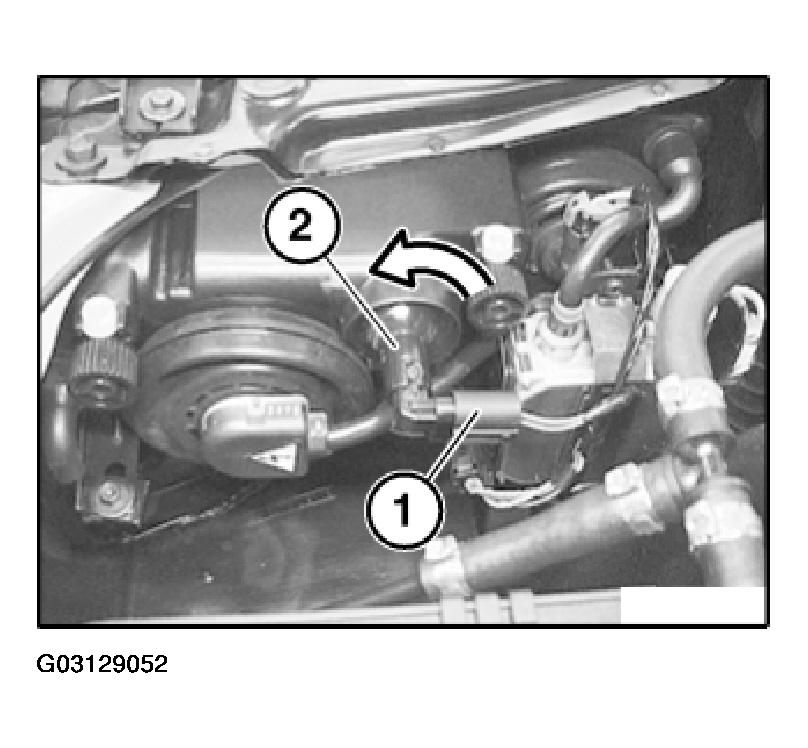

Fig 4: Removing Holder With Side-Marker Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
