63 99 076 Replacing left lamp for left Xenon light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for replacing light bulbs (exterior lights).

Up to 09/2000:

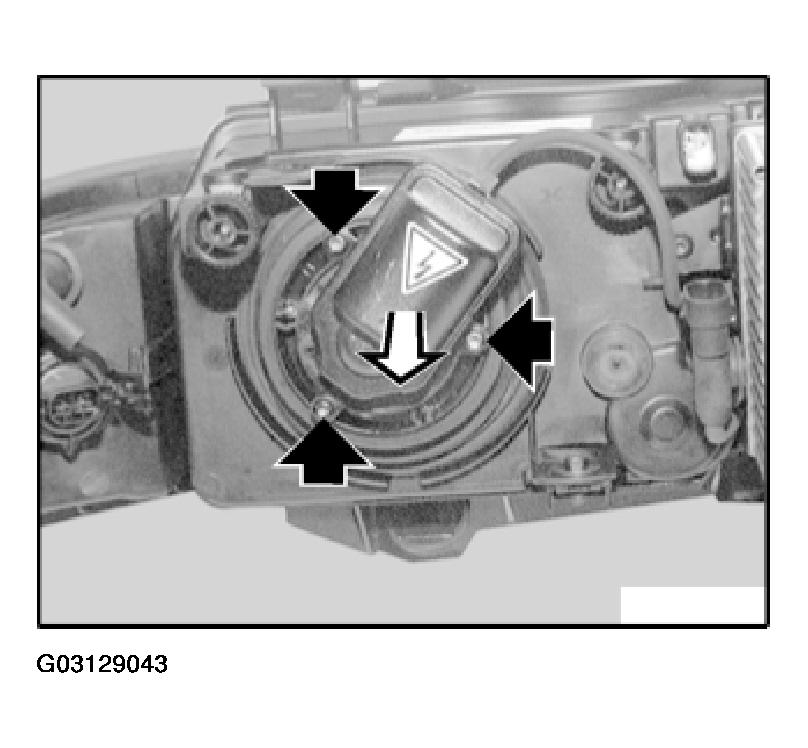

Release screws and lay ignition unit to one side.

Fig 1: Releasing Screws & Laying Ignition Unit To One Side

G03129043

Courtesy of BMW OF NORTH AMERICA, INC.

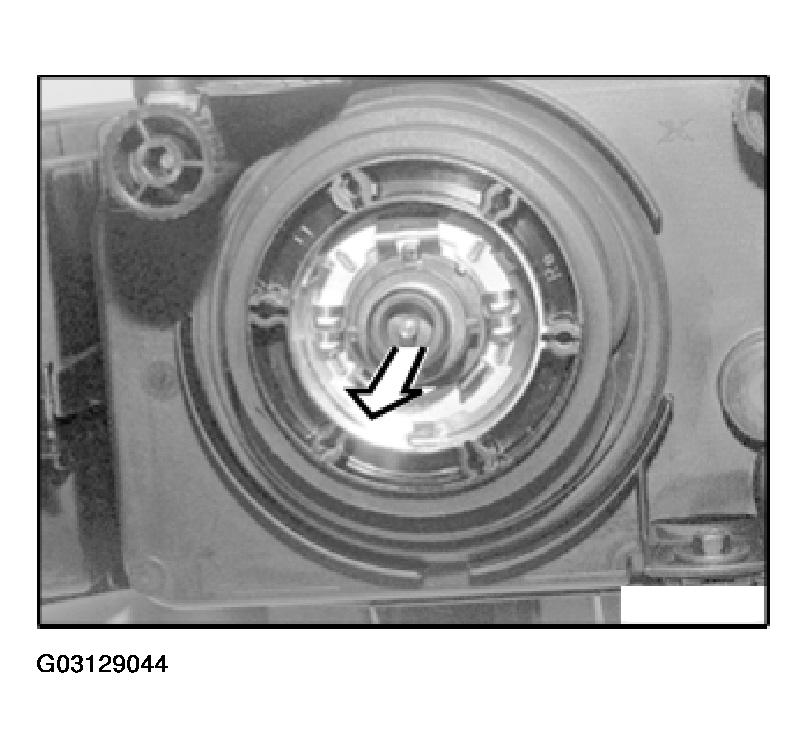

Remove lamp.

Fig 2: Removing Lamp

G03129044

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

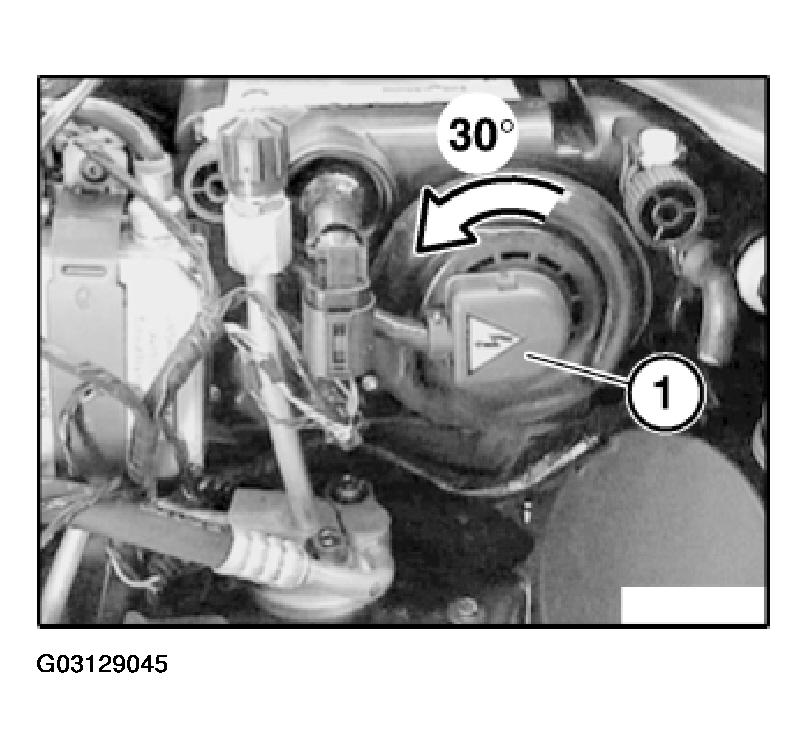

Turn plug connection (1) approx. 30° to left and disconnect.

Fig 3: Disconnecting Plug Connection

G03129045

Courtesy of BMW OF NORTH AMERICA, INC.

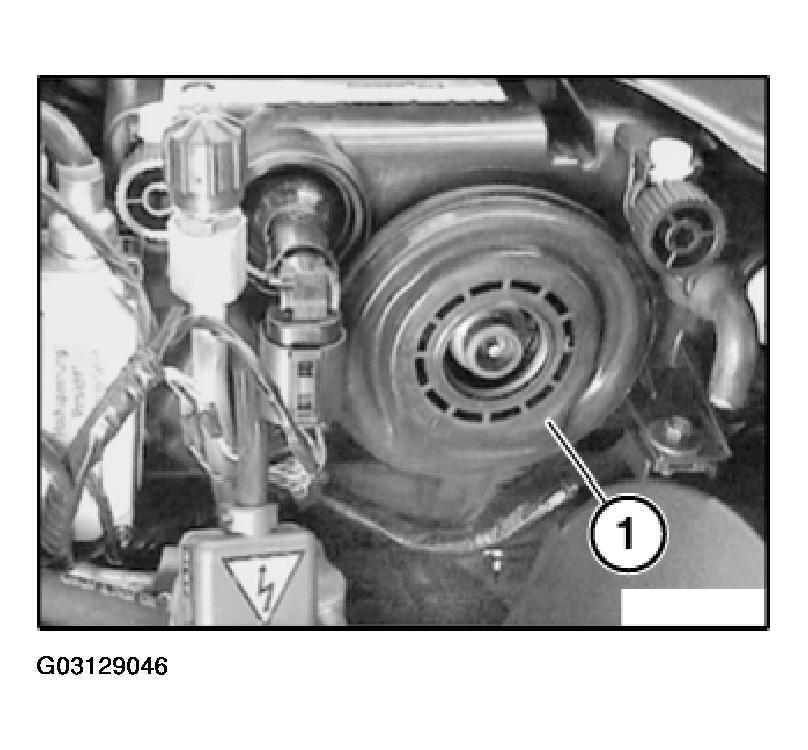

Detach cover (1).

Fig 4: Detaching Cover

G03129046

Courtesy of BMW OF NORTH AMERICA, INC.

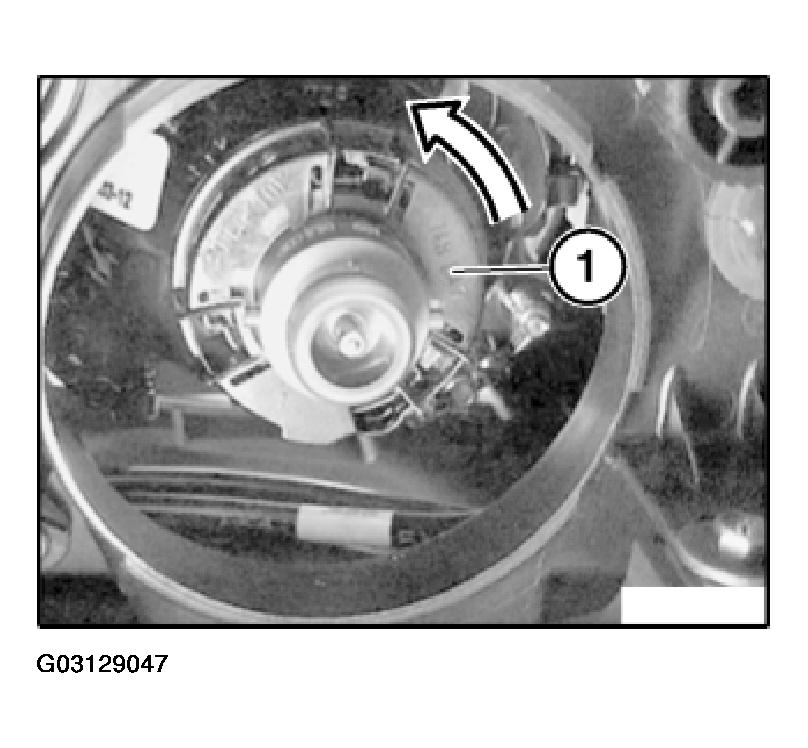

Turn fastener (1) to left.

Withdraw xenon lamp with fastener.

Fig 5: Withdrawing Xenon Lamp With Fastener

G03129047

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

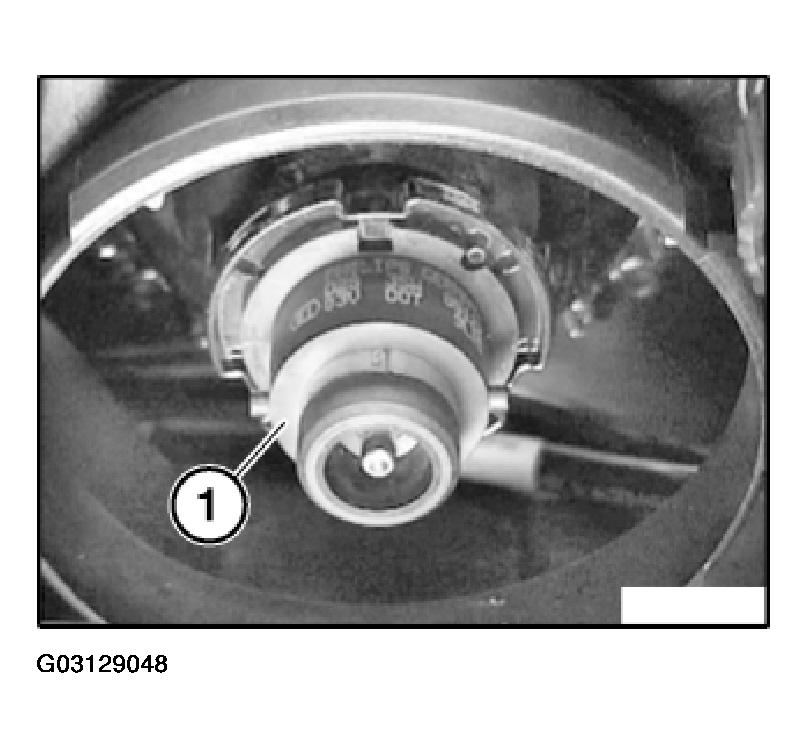

Install xenon lamp (1) in position.

Fit fastener and lock by turning to right.

Fig 6: Installing Xenon Lamp In Position

G03129048

Courtesy of BMW OF NORTH AMERICA, INC.
