63 10 Adjusting headlight for RHD/LHD vehicles

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

When crossing borders into countries where they drive on the other side of the road from that where the car was registered, it is essential to cover the asymmetrical wedge in the low beam headlight. The following pictures show the covered areas in question.

NOTE: Any adhesive residue may only be removed with the supplied cleaning cloth.

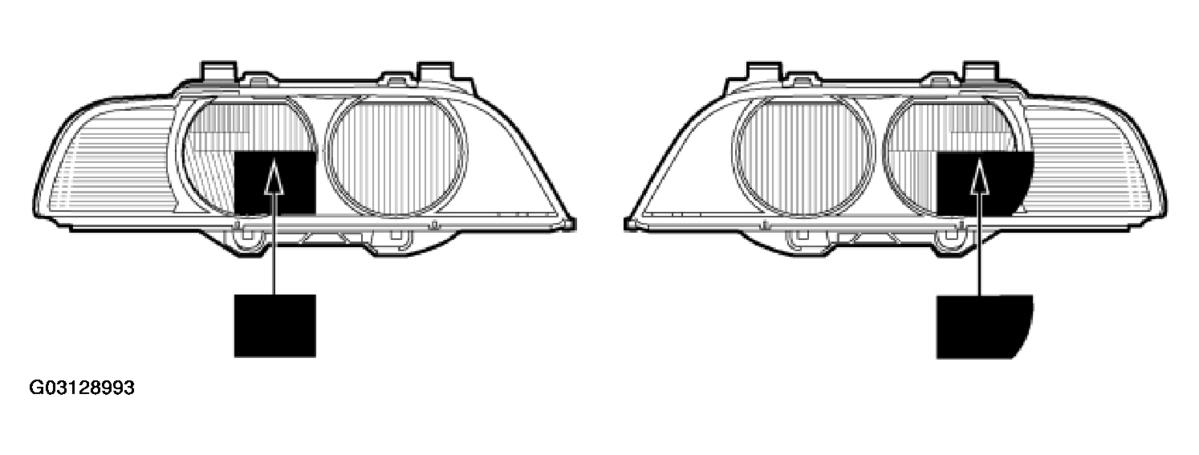

Fig 1: Adjusting Headlight For LHD Vehicles

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows the headlights on a left-hand-drive car.

NOTE: On RHD cars and cars fitted with xenon lights, it is not necessary to tape off the lights as they have their own adjustment facility. Refer to the Owner's Manual.
