63 31 000 Removing and installing/replacing complete interior light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Front:

Lever out ceiling light in direction of arrow.

Disconnect plug connection underneath and remove ceiling light.

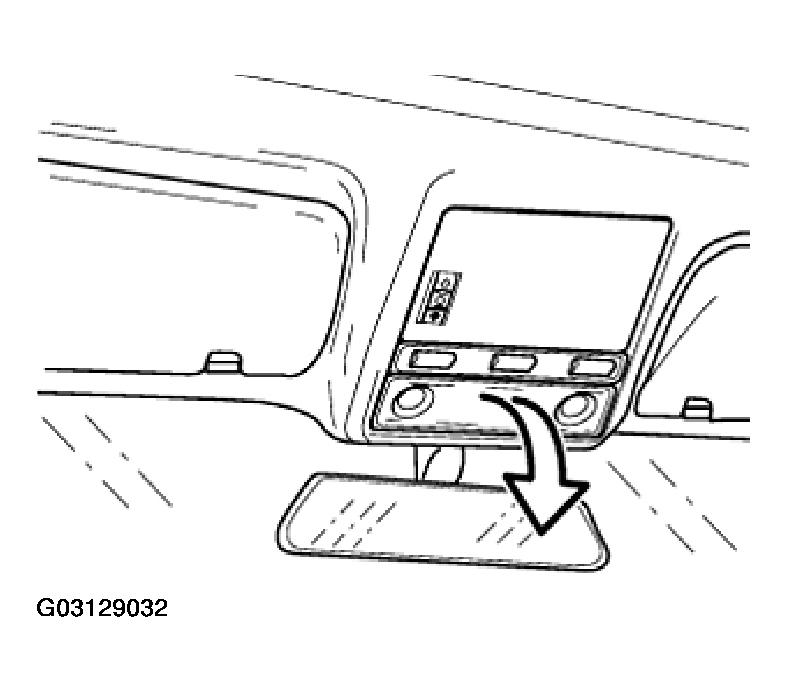

Fig 1: Removing Ceiling Light (Front)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear (touring only):

Lever out ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove ceiling light (1).

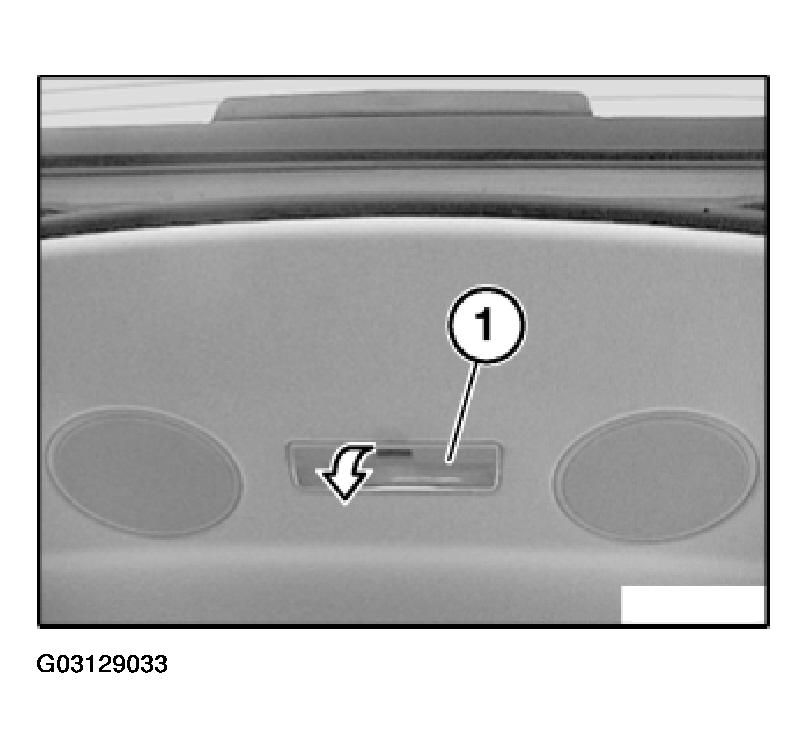

Fig 2: Removing Ceiling Light (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.
