63 12 950 Replace one bracket for headlight mount
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove complete headlight. See 63 12 001 Removing and installing/replacing left headlight

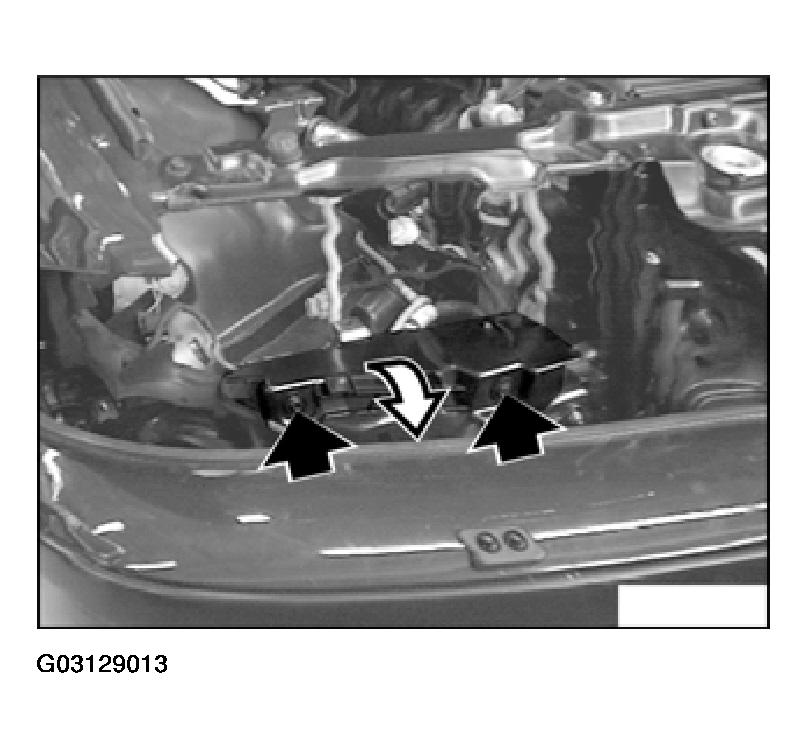

Release screws and remove holder for headlight mounting.
Installation:
Install holder for headlight mounting, tighten screws until hand-tight.

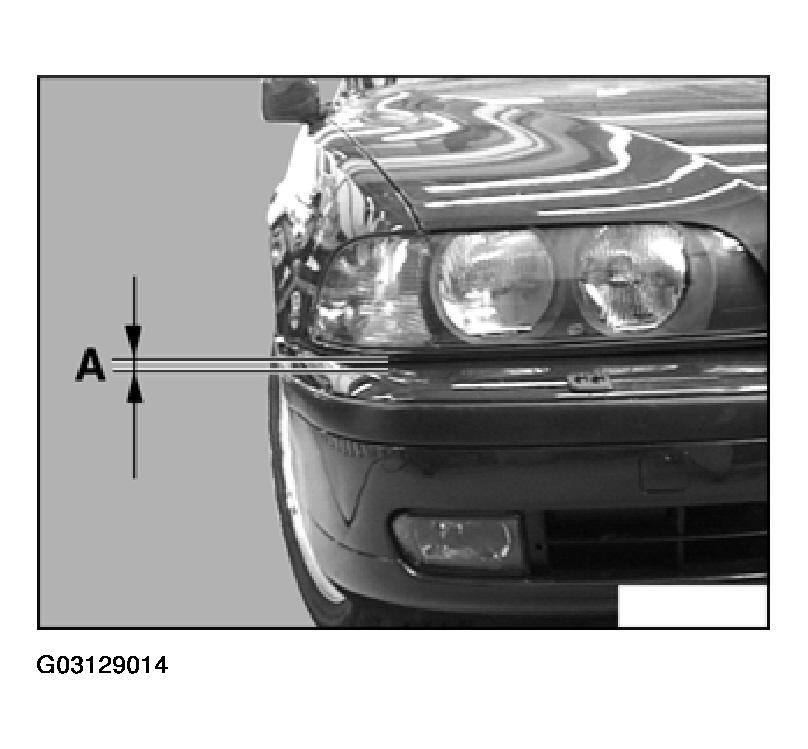

Install headlight and adjust gap between headlight and bumper, gap measurement (A) approx. 5 mm.
Remove headlight again.
Tighten down screws on holder for headlight mounting.
Reinstall headlight.
Adjust headlights.
