63 12 860 Replacing control unit for left xenon headlamp

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Xenon headlamps: Danger to life due to high voltage! Therefore disconnect xenon headlamps from voltage supply.

Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

M54 only:

Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54)

S62 only:

Remove left intake filter housing.

Fig 1: Removing Left Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 08/98:

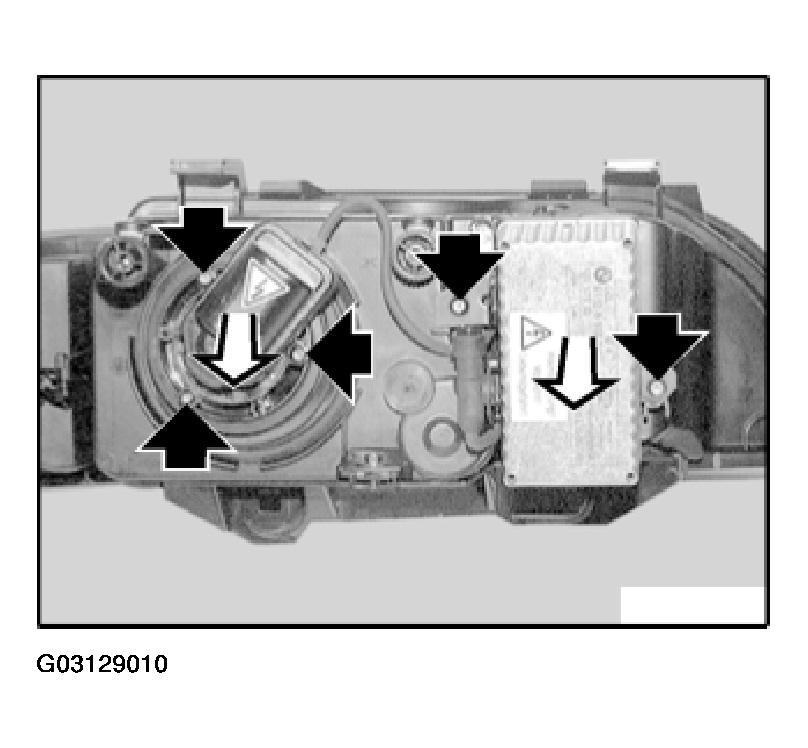

NOTE: Headlamp removed for purposes of clarity.

Release screws and remove control unit for xenon headlamp with ignition unit.

From 08/98:

Following illustrations show right xenon headlamp.

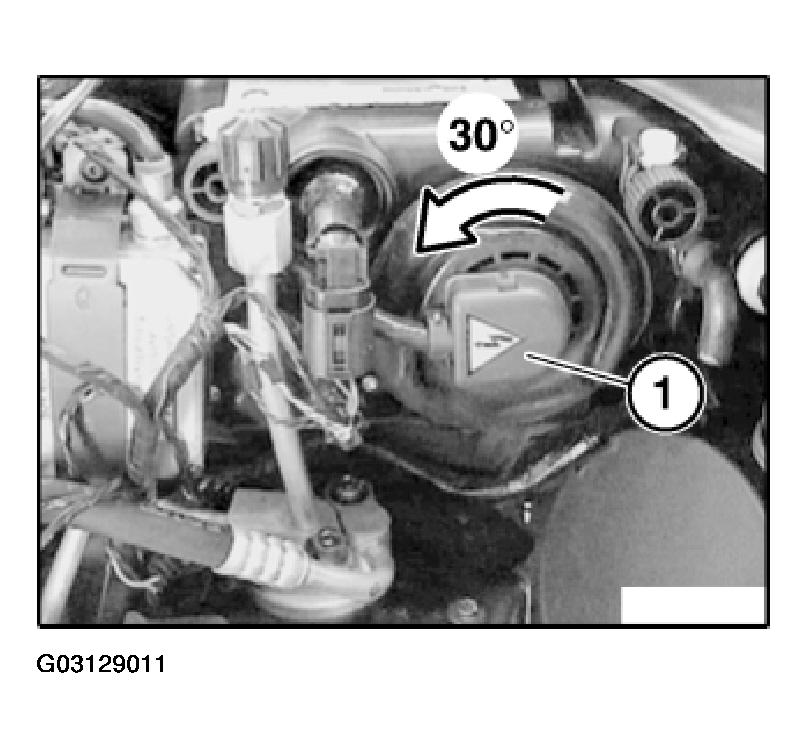

Turn plug connection (1) in direction of arrow and disconnect.

Fig 2: Turning Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

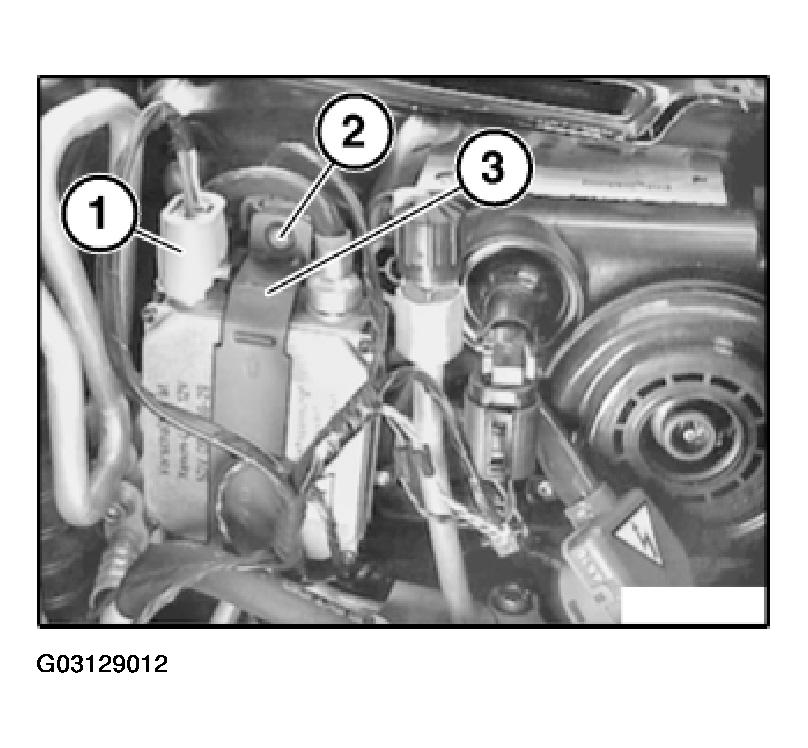

Disconnect plug connection (1).

Release screw (2) and remove control unit holder (3).

Remove control unit for xenon headlamp.

Fig 3: Removing Control Unit For Xenon Headlamp

Courtesy of BMW OF NORTH AMERICA, INC.
