63 12 350 Replacing adjusting elements for left headlight (up to 09/2000)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove insert from headlight housing.

Unclip adjusting elements (1) and (2) in direction of arrow.

If necessary, unclip mounting (3) in direction of arrow.

Installation:

Adjust headlights.

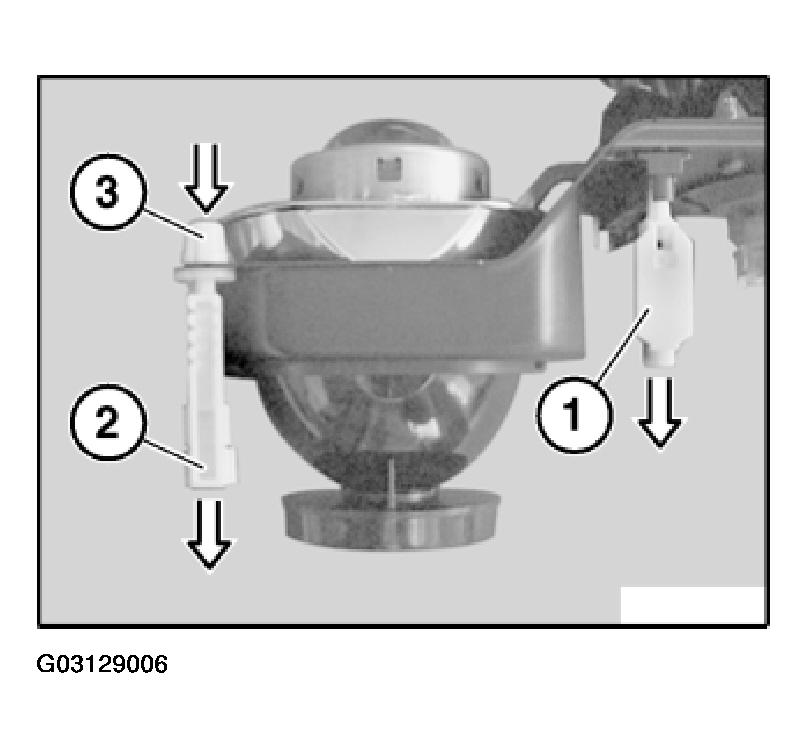

Fig 1: Replacing Adjusting Elements For Left Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
