61 61 270 Removing and installing complete wiper console

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove both wiper arms, refer to 61 61 100 REMOVING AND INSTALLING/REPLACING BOTH WINDSHIELD WIPER ARMS

Remove windshield cowl cover.

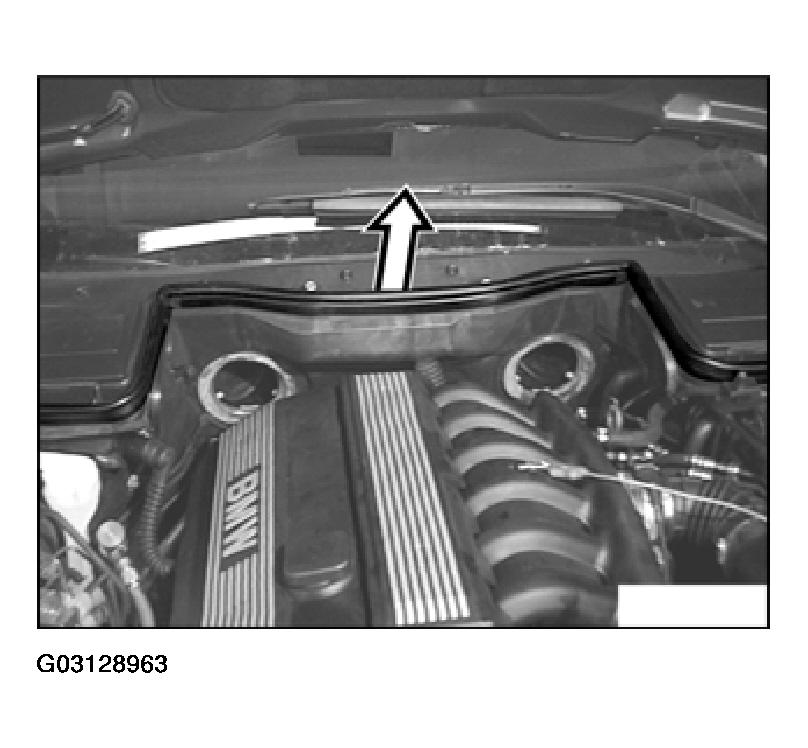

Remove sealing frame from engine hood.

Fig 1: Removing Sealing Frame From Engine Hood

Courtesy of BMW OF NORTH AMERICA, INC.

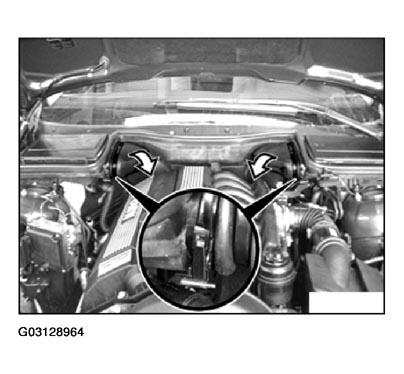

Unfasten clip from right and left air ducts, twist air duct and lift out.

Fig 2: Unfastening Clip From Right & Left Air Ducts, Twist Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Installation instructions:

Fit air duct to end wall. Twist, then insert in underside of microfilter.

Fig 3: Fitting Air Duct To End Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left and right microfilter, refer to 64 31 010 REPLACING MICROFILTER FOR INTERIOR VENTILATION .

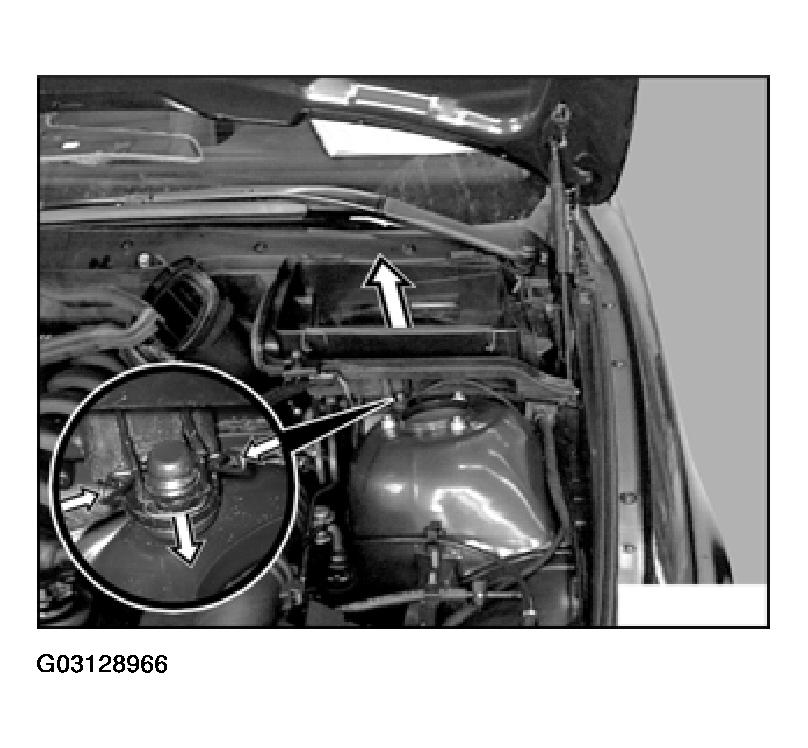

Unfasten clip and lift out right and left microfilter housings.

Fig 4: Removing Left & Right Microfilter

Courtesy of BMW OF NORTH AMERICA, INC.

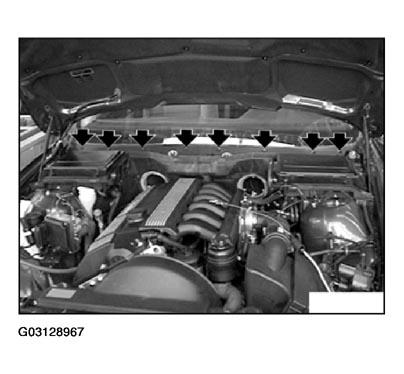

Release all split rivets and remove cowl screen.

Fig 5: Releasing All Split Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

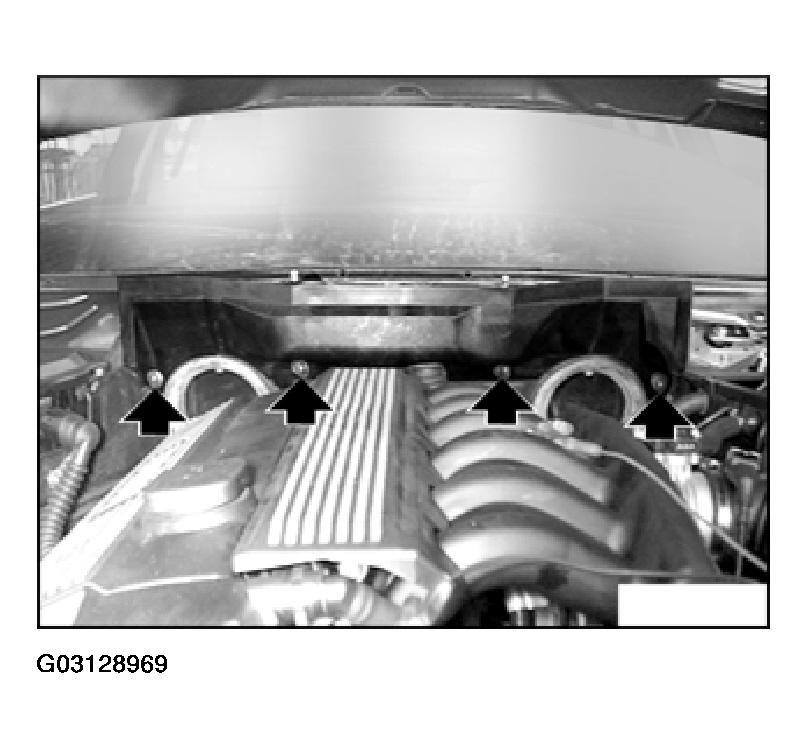

Unfasten screw and remove cover.

Fig 6: Unfastening Screw Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

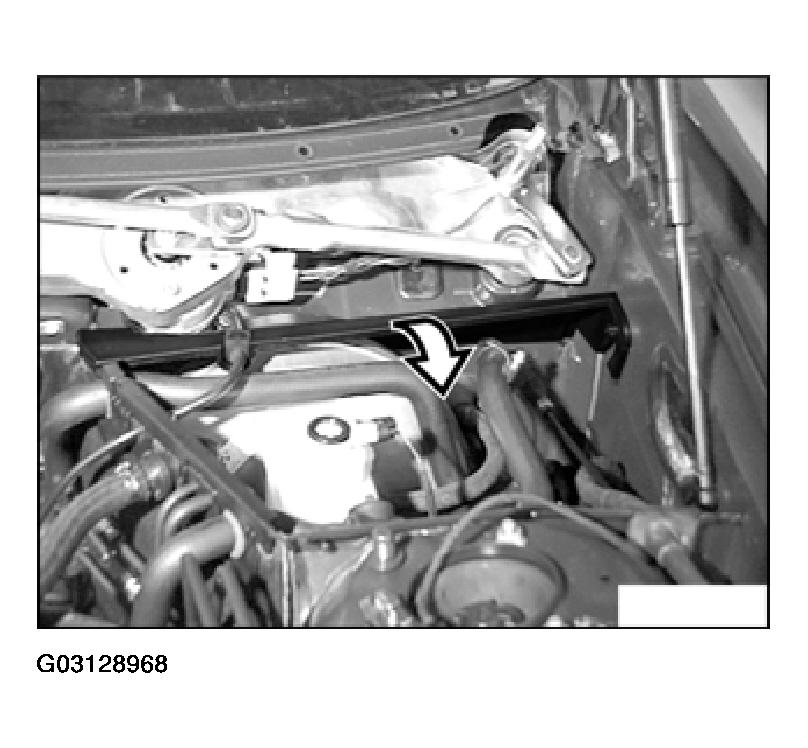

Twist all levers through approx. 90° and remove cable cover.

Fig 7: Twisting All Levers Through Approx. 90°

Courtesy of BMW OF NORTH AMERICA, INC.

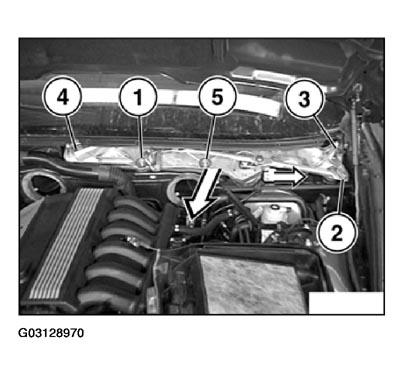

Remove connector, unfasten screws and lift out complete wiper console.

Installation:

Insert wiper unit in body and tighten down by hand without torsional stress. Tighten down screws in illustrated sequence.

Comply with Tightening Torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Fig 8: Lifting Out Complete Wiper Console

Courtesy of BMW OF NORTH AMERICA, INC.
