61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

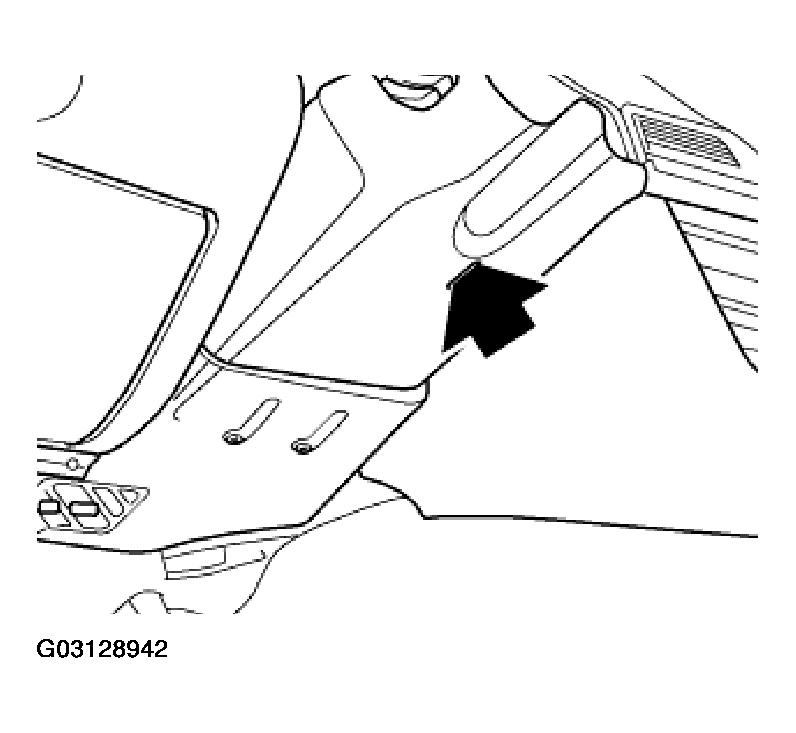

Unscrew screw.

Fig 1: Unscrewing Screw

G03128942

Courtesy of BMW OF NORTH AMERICA, INC.

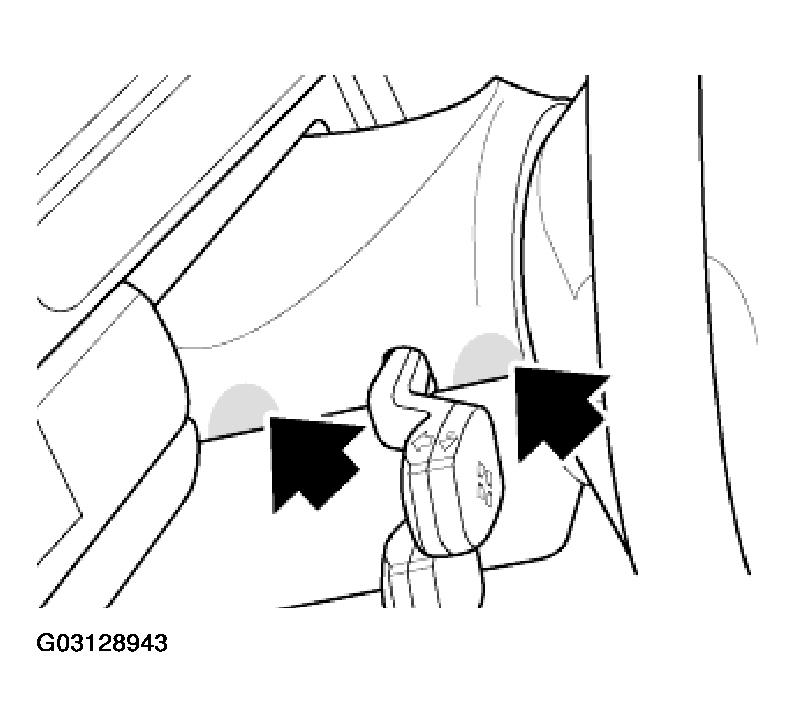

Press upper section of steering column trim inwards on both sides in areas shown, detach lower section from below and allow it to hang down.

Fig 2: Pressing Upper Section Of Steering Column Trim Inwards On Both Sides

G03128943

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

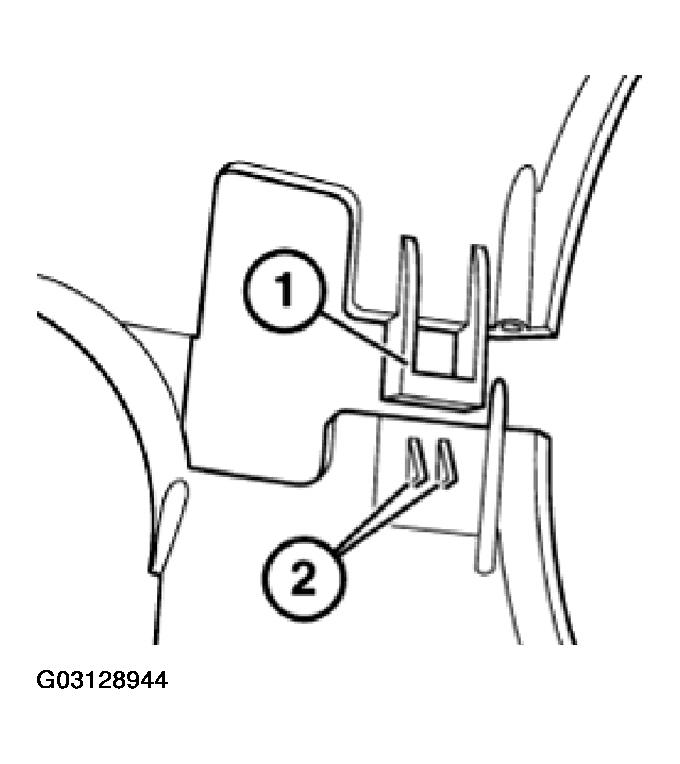

Locking unit (1) must locate in the hook (2).

Fig 3: Identifying Locking Unit & Hook

G03128944

Courtesy of BMW OF NORTH AMERICA, INC.

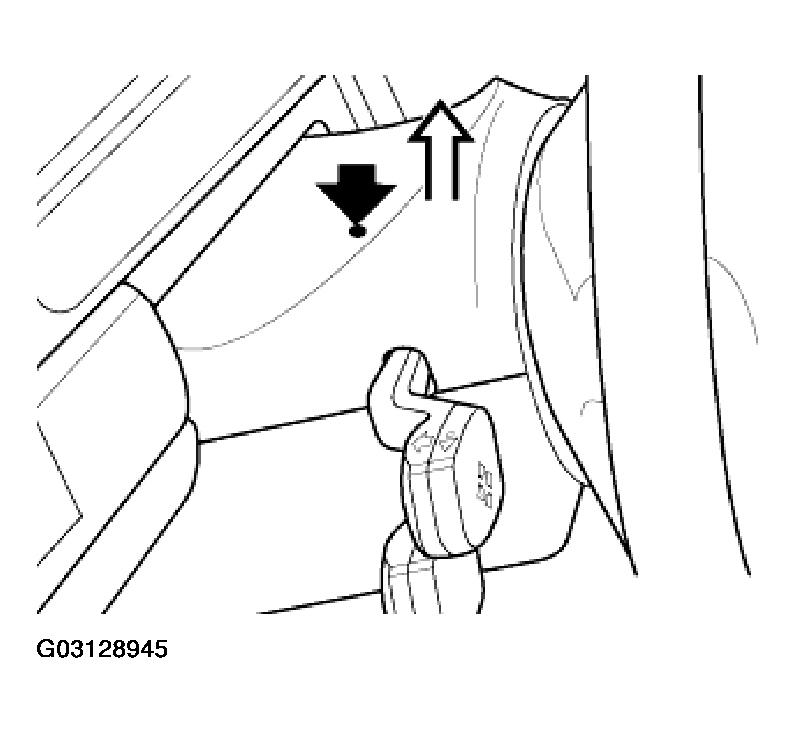

Release screw and raise upper panel.

Fig 4: Raising Upper Panel

G03128945

Courtesy of BMW OF NORTH AMERICA, INC.

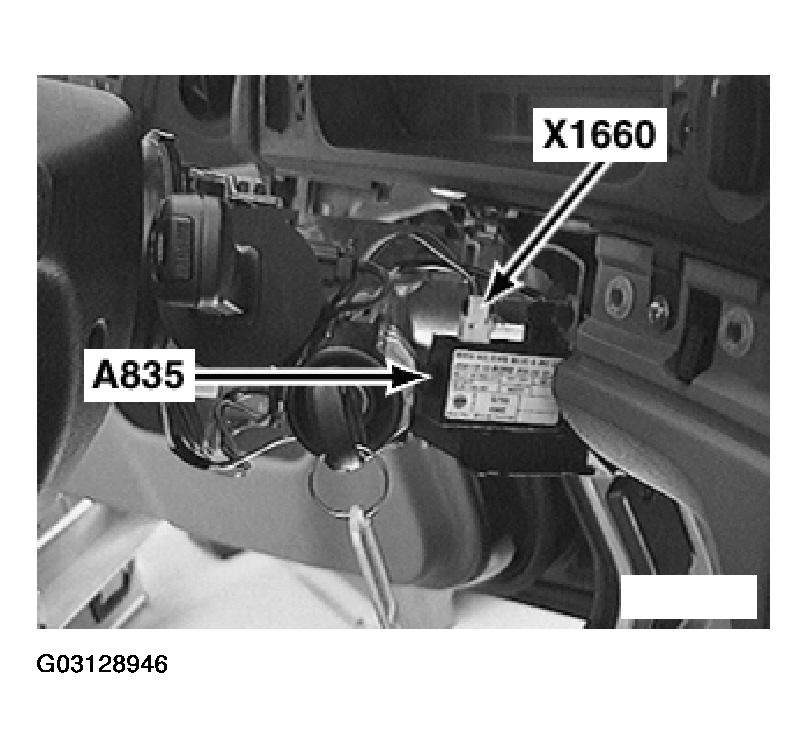

Remove transceiver module and disconnect plug.

Fig 5: Removing Transceiver Module

G03128946

Courtesy of BMW OF NORTH AMERICA, INC.

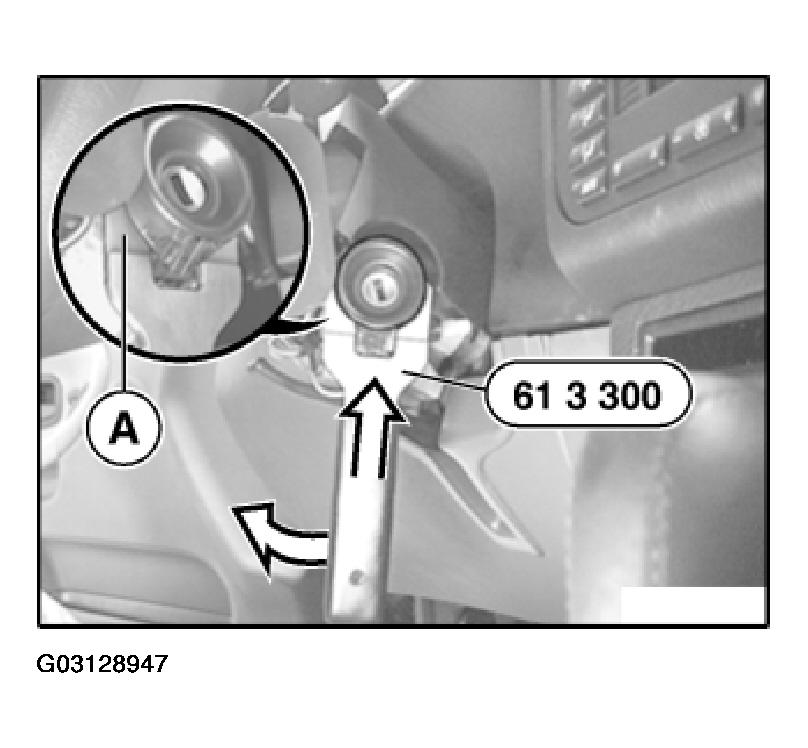

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

Fig 6: Using Special Tool 61 3 300

G03128947

Courtesy of BMW OF NORTH AMERICA, INC.
