51 24 100 Removing and installing/replacing trunk lid lock (upper section of trunk lid lock)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower trim power from trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID

Lift out actuating rod (1).

Disconnect plug connections (2).

Unfasten screws and remove upper section of trunk lid lock.

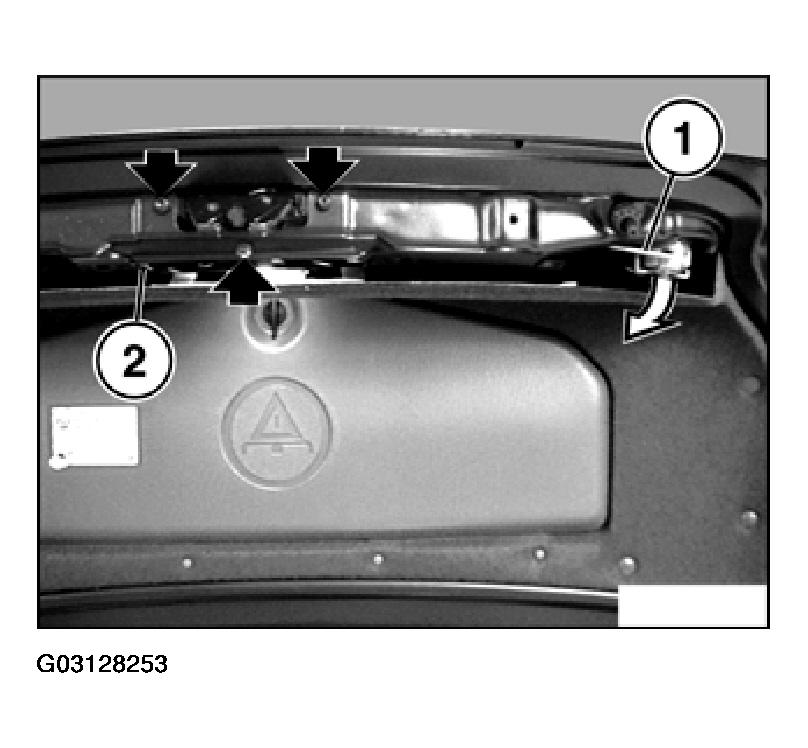

Fig 1: Lifting Out Actuating Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Adjust upper section of trunk lid lock.

Only replace:

Unfasten screws and remove actuator drive (1).

Lift out actuating rod (2).

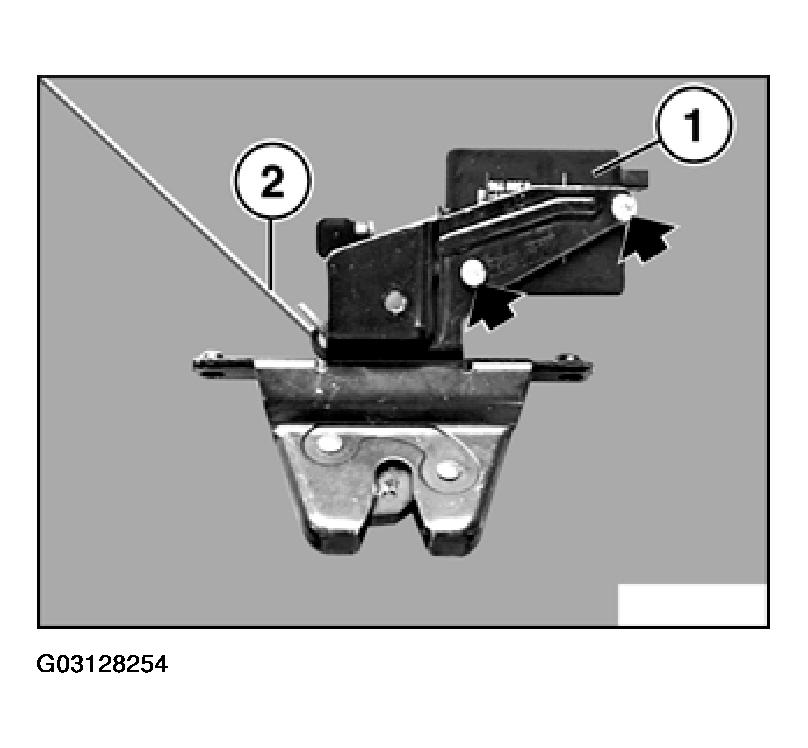

Fig 2: Unfastening Screws & Removing Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.
