51 16... Replacing left or right outside mirror housing

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror glass, refer to 51 16 026 REPLACING MIRROR GLASS

Mirror with automatic dip action:

Tilt mirror forward. Unclip retaining clips and remove cover.

Fig 1: Unclipping Retaining Clips & Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Mirror with automatic dip action:

Fold mirror forward again as far as possible.

Unfasten screws and remove "housing glasses".

Installation:

Check function.

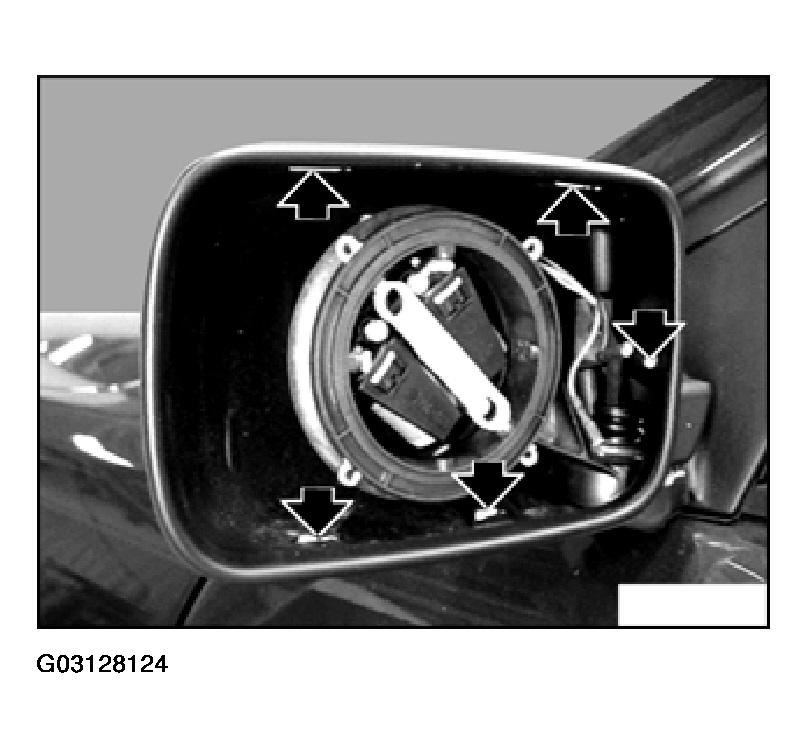

Fig 2: Unfastening Screws & Removing "Housing Glasses"

Courtesy of BMW OF NORTH AMERICA, INC.

Mirror without automatic dip action:

Tilt mirror forward. Unclip retaining clips and remove cover.

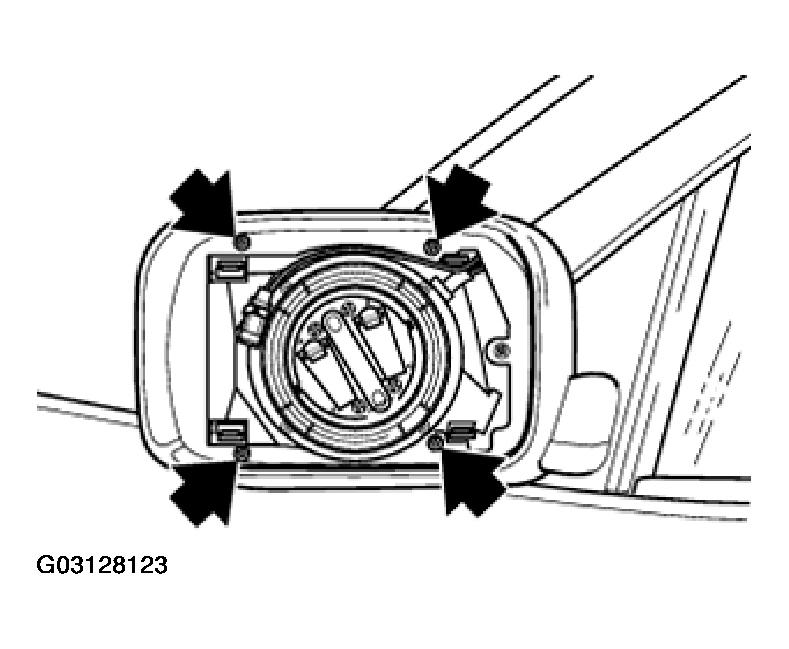

Fig 3: Unclipping Retaining Clips & Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
