5111001 Replacing front bumper

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Replacing center section of front bumper (support beam):

Remove complete front bumper.

Remove holder for license plate.

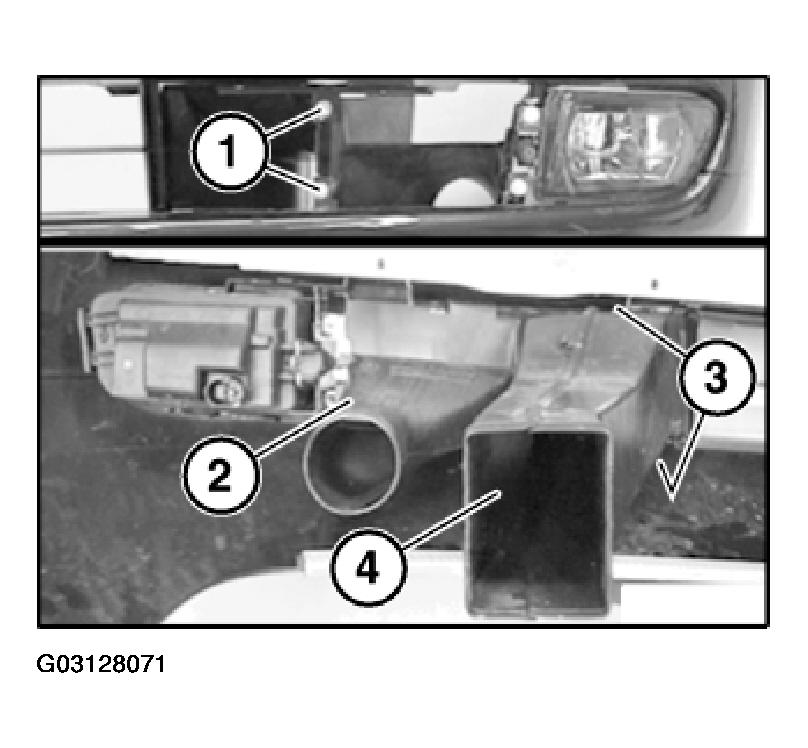

Unfasten screws (1) and lift off air guide (2). In addition, lever air duct (4) on left/right out of clips (3) and remove.

Fig 1: Unfastening Screws & Lifting Off Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

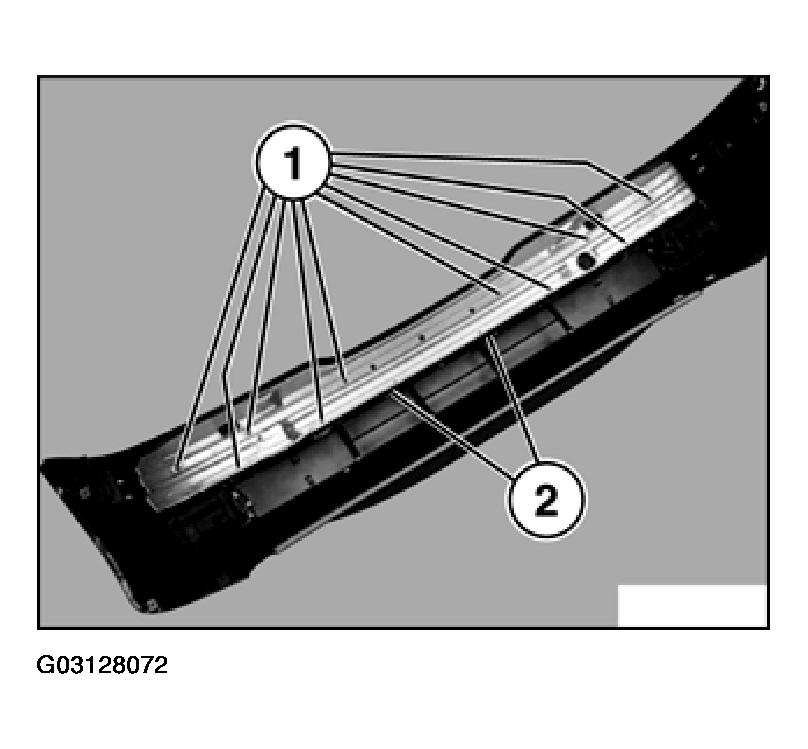

Lever out expansion rivets (1) and (2) and remove bumper carrier towards rear.

NOTE: Lift out expanding rivets (2) by pulling inwards with pincers.

Fig 2: Levering Out Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:

If necessary, remove both jet nozzles of headlamp cleaning system.

If necessary, remove complete water hose.

Installation:

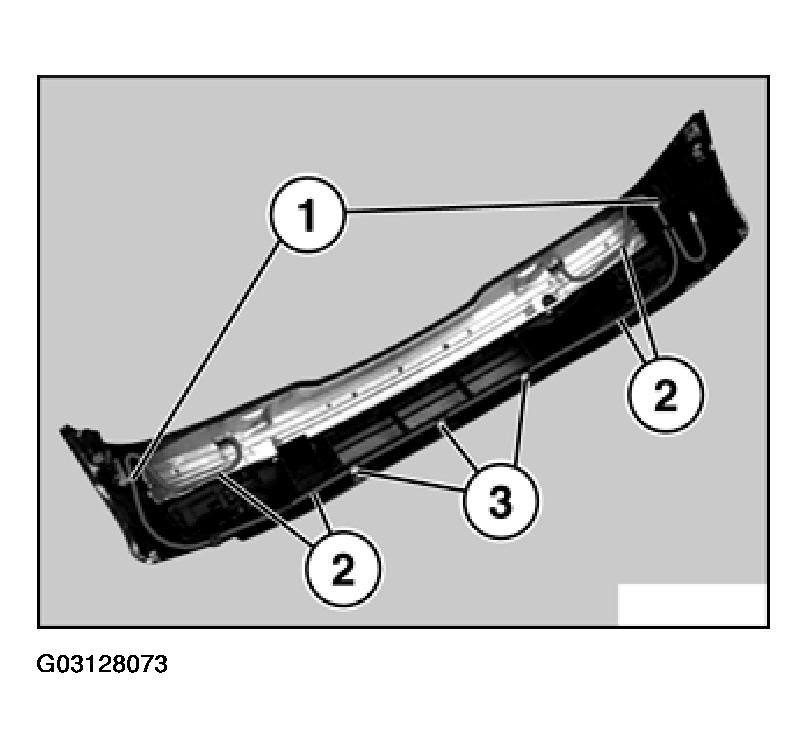

Route water hose under plastic tabs (3).

Fig 3: Removing Water Hose Under Plastic Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing front bumper (bumper trim):

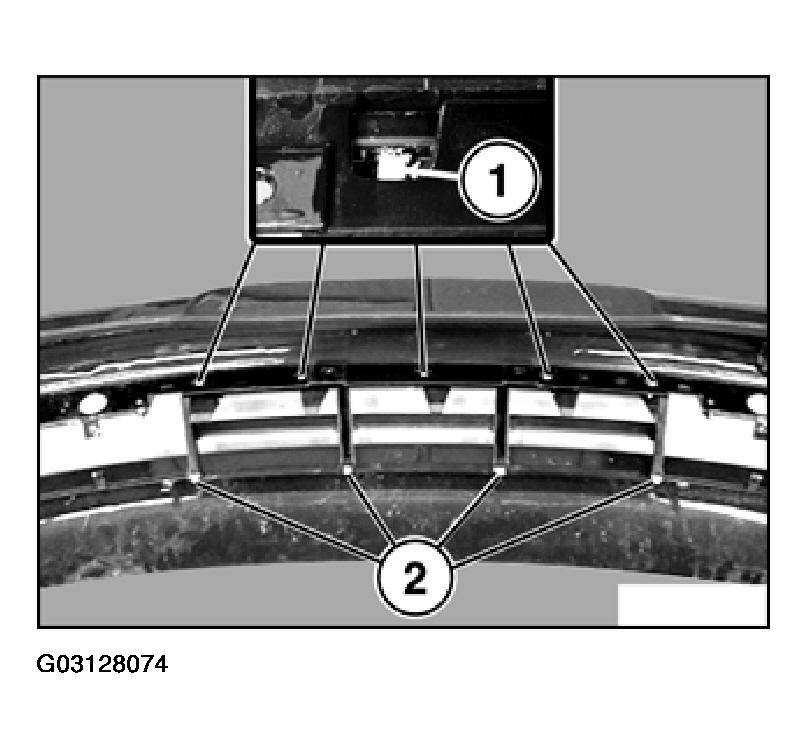

Unlock retaining clips at top (1) and bottom (2) and remove center of grill by pulling backwards.

Fig 4: Removing Center Of Grill By Pulling Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Version with fog lamps:

If necessary, remove both fog lamps.

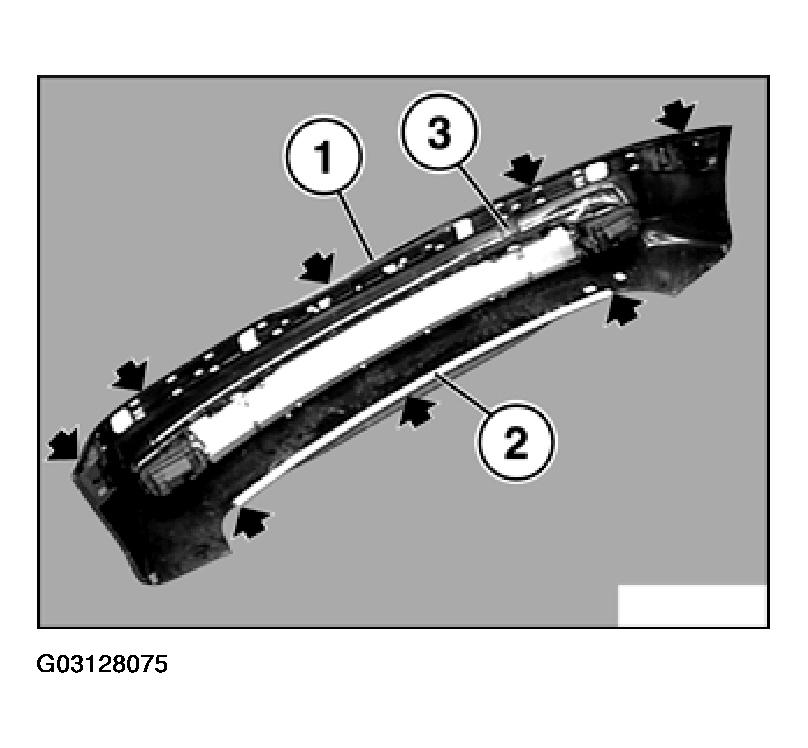

Pull mucket (1) upwards to remove.

If necessary, pull spoiler lip (2) downwards to remove.

Lift cover (3) off towing eye and unfasten catch band.

Remove all tab washers and slide on new bumper.

Fig 5: Removing All Tab Washers & Sliding On New Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
