51 11 158 Replacing baseplate for licence plate

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove licence plate.

Remove both body moldings.

If necessary, lever out expanding wedges (1) at top.

Lever out license plate holder at bottom and remove towards front/top.

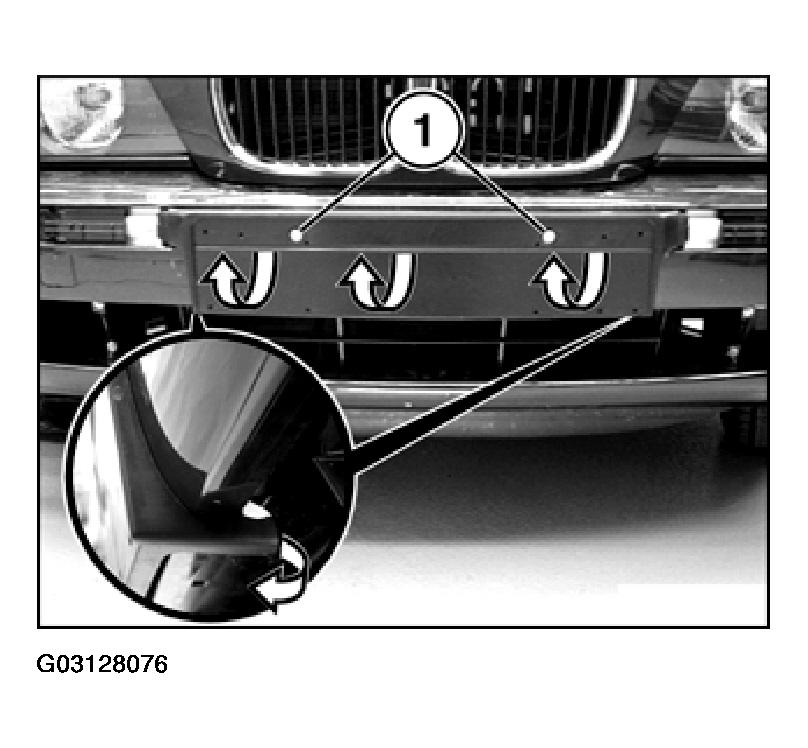

Fig 1: Levering Out Expanding Wedges At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Lever chrome strip (1) out of clips (2) of body molding and remove.

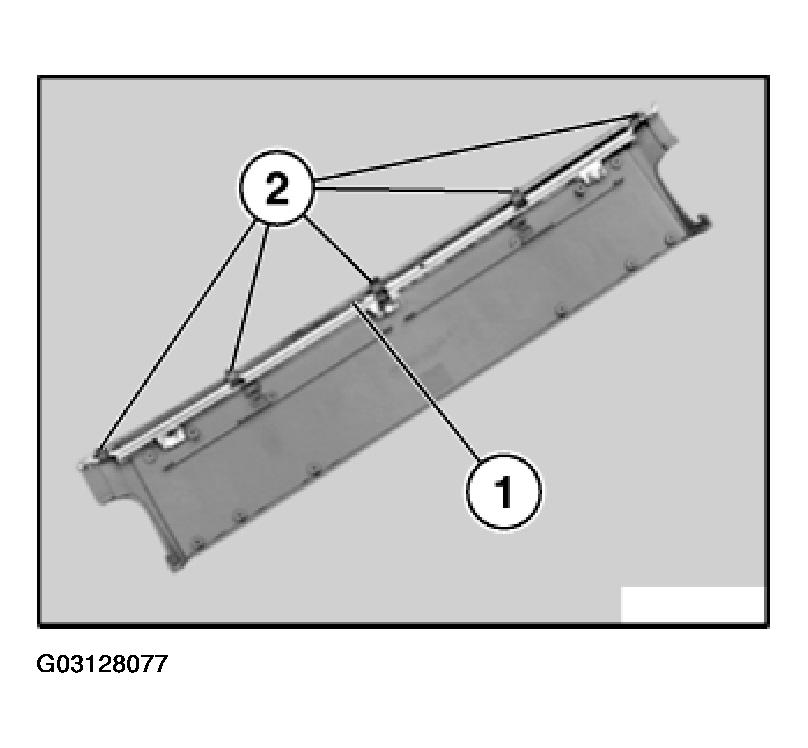

Fig 2: Levering Chrome Strip Out Of Clips Of Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 08/2000:

Installation:

Catches (1) to (3) of holder (4) must not be damaged.

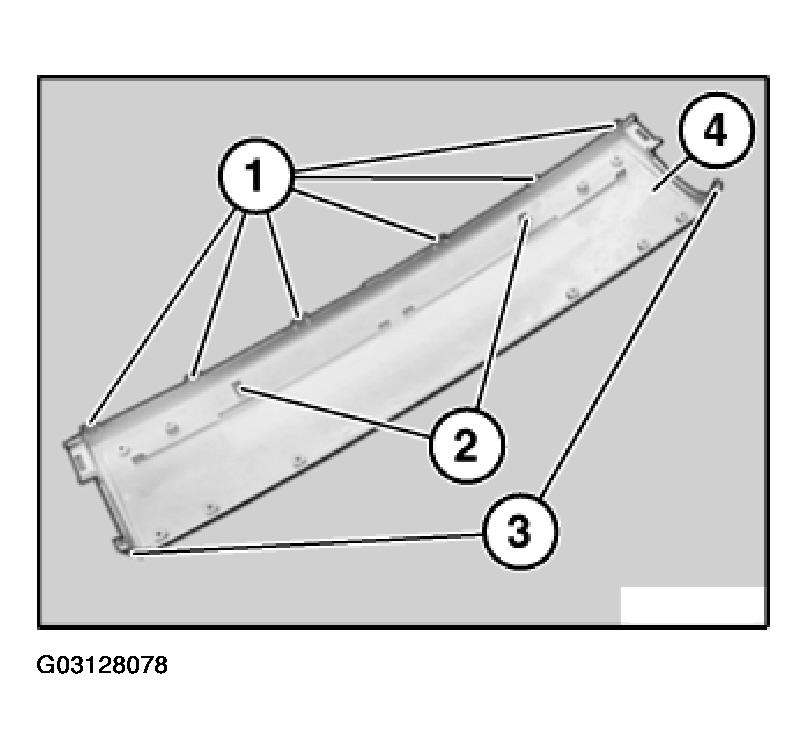

Fig 3: Precaution For Holder

Courtesy of BMW OF NORTH AMERICA, INC.
