62 1 120 HUD adjusting tool

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For adjusting head-up display with projection gauge 62 1 121 and adjusting wrench 62 1 122

Series: E60, E61, E63, E64

SI number: 01 22 03 (028)

Order number: 62 1 120

HUD adjusting tool

Consisting of:

1 = 62 1 121 Projection gauge (HUD)

Note: For test image of head-up display

2 = 62 1 122 Adjusting key for HUD

Note: For height adjustment of HUD

In conjunction with: Projection gauge 62 2 121

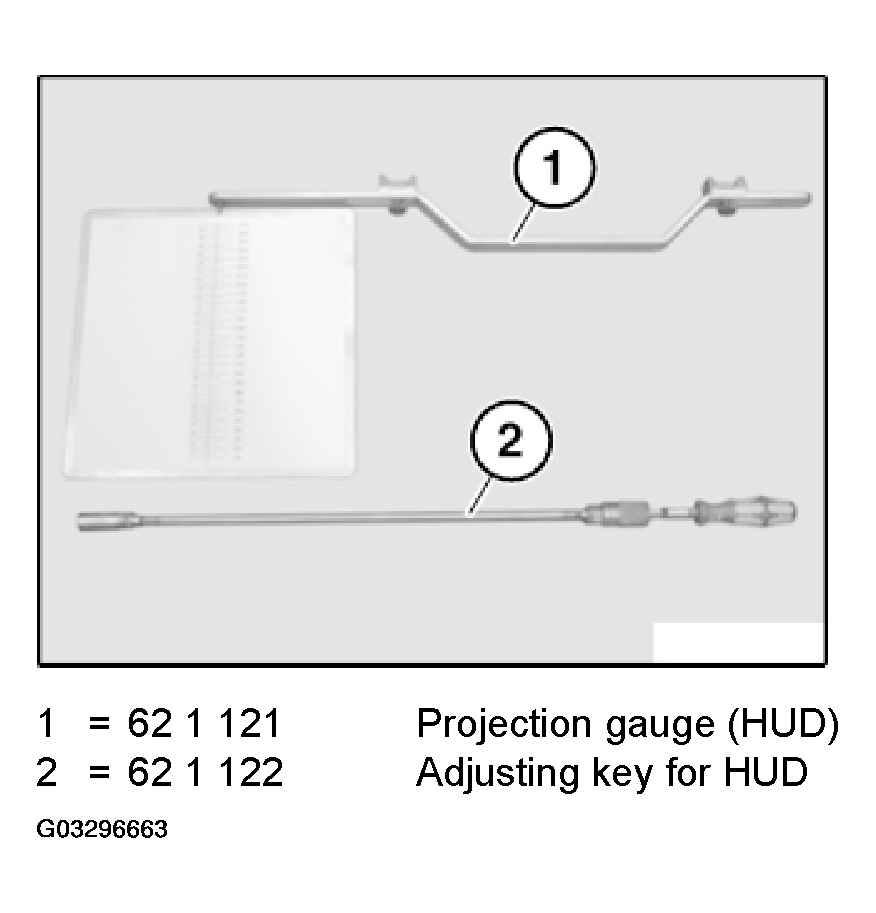

Fig 1: Identifying HUD Adjusting Tool

Courtesy of BMW OF NORTH AMERICA, INC.
