Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing windscreen wiper arm from drive shaft

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, RR1

Storage location: B40

SI number: 1 10 99 (433)

Order number: 61 6 0606

Universal wiper arm puller

Consisting of:

1 = 61 6 061 Basic body

2 = 61 6 062 Claw, left/right

3 = 61 6 063 Spindle

4 = 61 6 064 Thrust piece

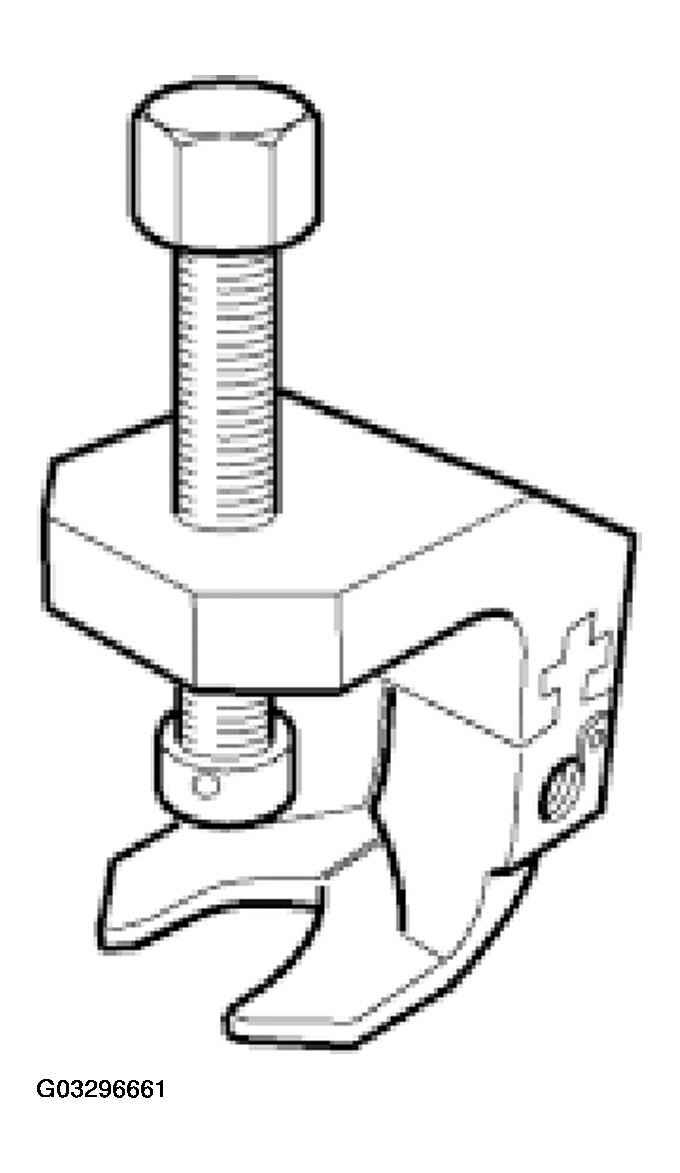

Fig 1: Identifying Universal Wiper Arm Puller

Courtesy of BMW OF NORTH AMERICA, INC.
