61 4 450 20-pin V-adapter lead (D 2.5), black

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 61 1 459, 61 4 440

Note: For LKM and EM convertible top GM, LCM, AMP

Series: E30, E31, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64

Storage location: C 105

SI number: 1 08 90(250)

Order number: 61 4 450

20-pin V-adapter lead (D 2.5), black

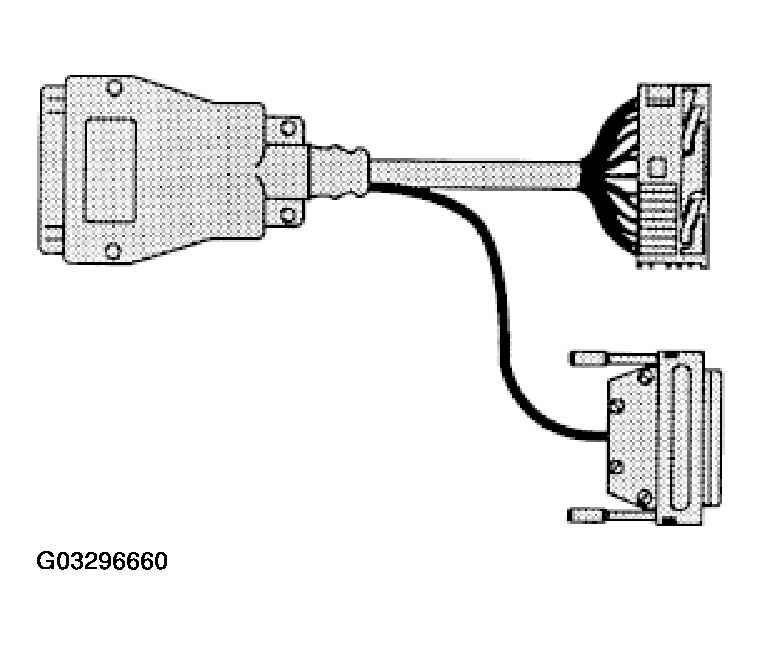

Fig 1: Identifying 20-Pin V-Adapter Lead
G03296660Courtesy of BMW OF NORTH AMERICA, INC.
