Minimum Set: Measuring & Testing Equipment
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Note: For connecting all adapter cables with 61-pin to 105-pin plug connections
Series: E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1
Storage location: G 110, S 205, U 202, U 205
SI number: 2 04 01(710)
Order number: 61 4 380

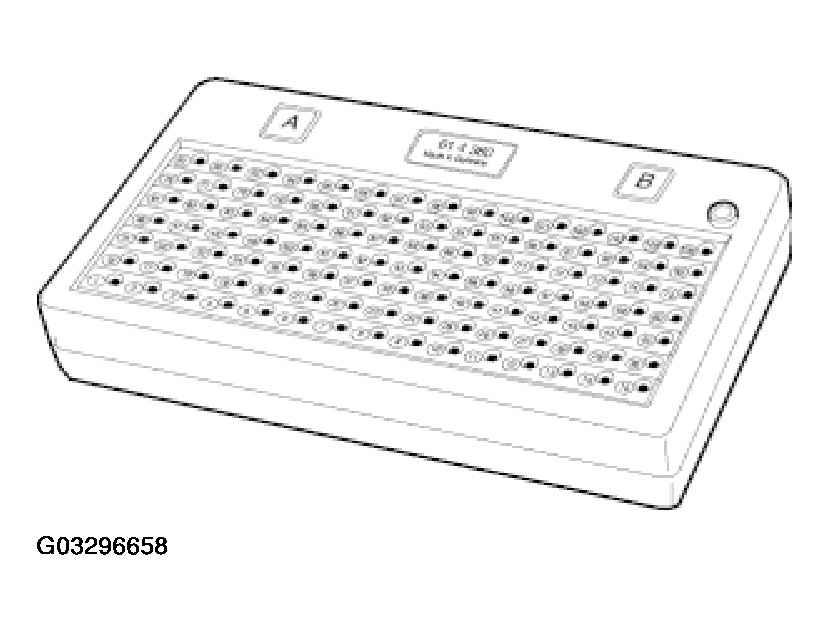

Measuring box, 105-pin, complete
Consisting of:
1 = 61 4 381 Measuring box, 105-pin
Note: Without accessories
2 = 61 4 382 Test lead, black
Note: 2 mm system, lead length: 750 mm
3 = 61 4 383 Test lead, red
Note: 2 mm system, lead length: 750 mm
4 = 61 4 384 Test lead set
Note: 2/4 mm system, lead length: 200 mm
5 = 61 4 385 Earth/ground cable
Note: For shield pick-off, lead length: 1.5 m
