Minimum Set: Measuring & Testing Equipment

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For optical fibres and cable repair

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, R50, R53, RR1

SI number: 1 14 01(766)

Order number: 61 4 320

Crimping set with pliers

Consisting of:

1 = 61 4 321 Pliers without crimping head

2 = 61 4 322 Crimping head

Note: For stripping insulation and cutting fiber optic cable to length

3 = 61 4 323 Crimping head

Note: For crimping fiber optic cable contacts

4 = 61 4 324 Crimping head

Note: For crimping MQS contacts

5 = 61 4 325 Crimping head

Note: For crimping MPQ contacts

6 = 61 4 326 Substitute blade

Note: For face-cutting fiber optic cables

7 = 61 4 327 Substitute blade

Note: With tool for replacing blade in cable stripping unit

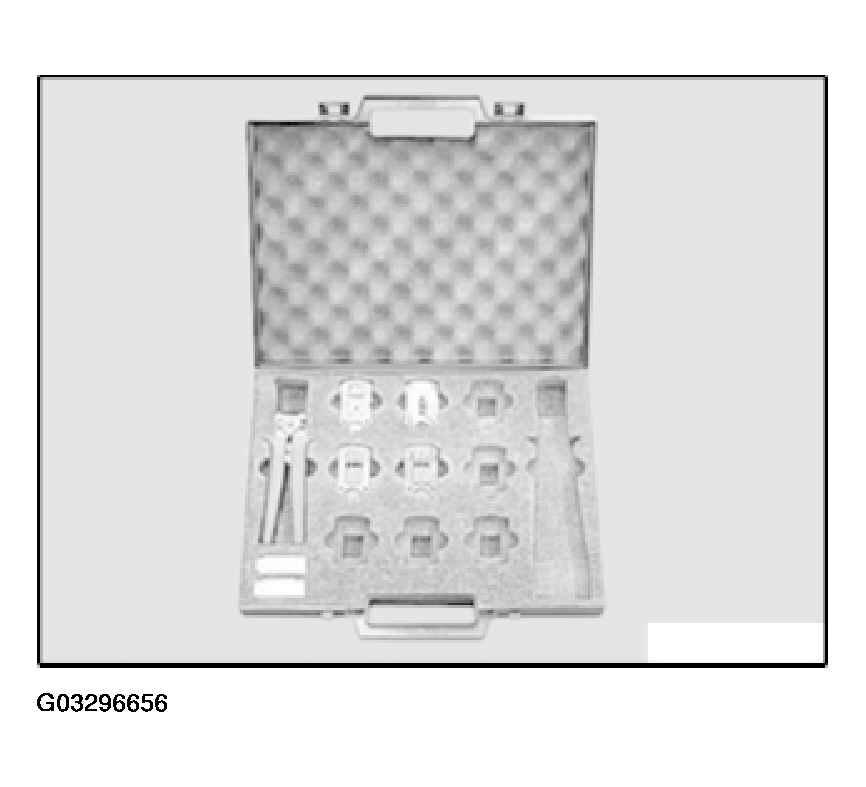

Fig 1: Identifying Crimping Set With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.
