Minimum Set: Measuring & Testing Equipment

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: 1st use: On engines with electric coolant pump (e.g. N52). 2nd use: On active front steering (AFS).

Series: E60, E61, E63, E64, E90, E91

SI number: 02 01 05 186

Order number: 61 2 4706

V-adapter lead 4-pin

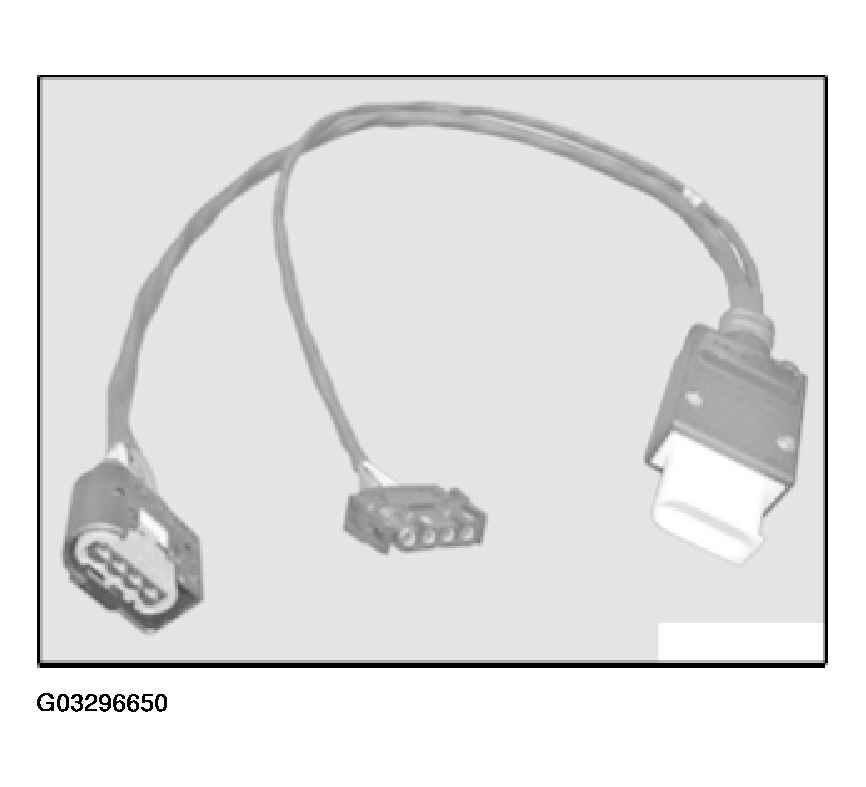

Fig 1: Identifying V-Adapter Lead 4-Pin
G03296650Courtesy of BMW OF NORTH AMERICA, INC.
