Minimum Set: Measuring & Testing Equipment
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.
Note: For performing installation and adjustment work with front seat with electric seat adjustment removed 61 2 071 for activating removed convertible top E85 and R52
Series: E31, E36, E38, E46, E52, E60, E61, E65, E66, E85, R52, RR1
Storage location: R 204, R 205, R 206, R 207
SI number: 2 12 91(450)
Order number: 61 2 070

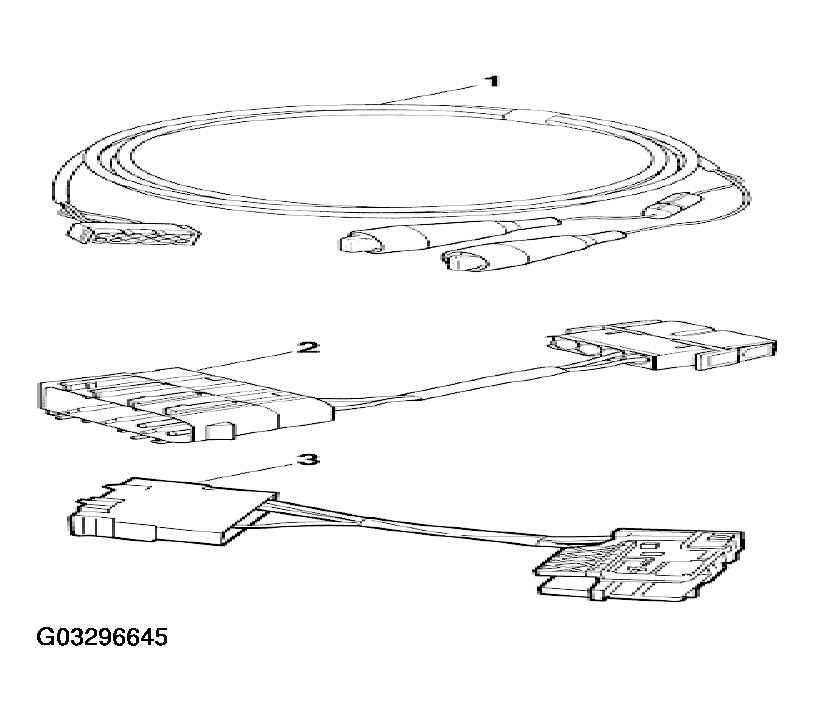

Cable set
Consisting of:
1 = 61 2 071 Power supply cable
Note: Connection between a battery and different adapter cables
2 = 61 2 072 Adapter cable
Note: Model series: E36
3 = 61 2 073 Adapter lead
Note: Model series: E38
In conjunction with: 61 2 071
4 = 61 2 074 Adapter lead
Note: Model series: E46, E52
In conjunction with: 61 2 071
