Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For load current contacts

Series: All models

SI number: 20600(636)

Order number: 61 1 180

Removal tool

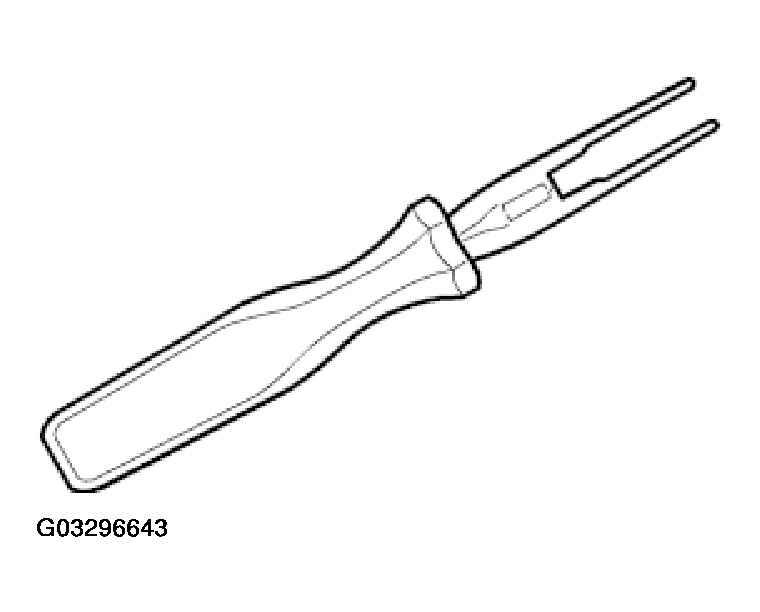

Fig 1: Identifying Removal Tool
G03296643Courtesy of BMW OF NORTH AMERICA, INC.
