52 0 100 Crimping tool for core end sleeves

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For bypass routing past seat heating in backrest. Action for E60/E65/E66/E67.

Series: E60, E65, E66, E67

Order number: 52 0 100

Crimping tool for core end sleeves

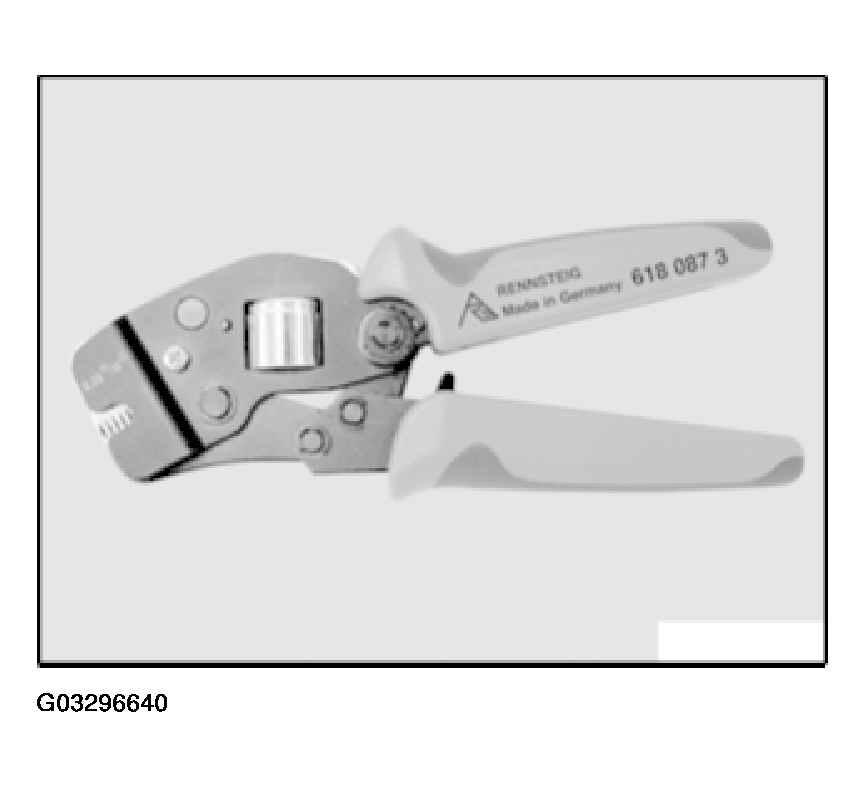

Fig 1: Identifying Crimping Tool

Courtesy of BMW OF NORTH AMERICA, INC.
