Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For loosening and tightening wheel studs (antitheft)

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53

SI number: 1 27 04 (167)

Order number: 36 1 300

Set of wheel stud adapters

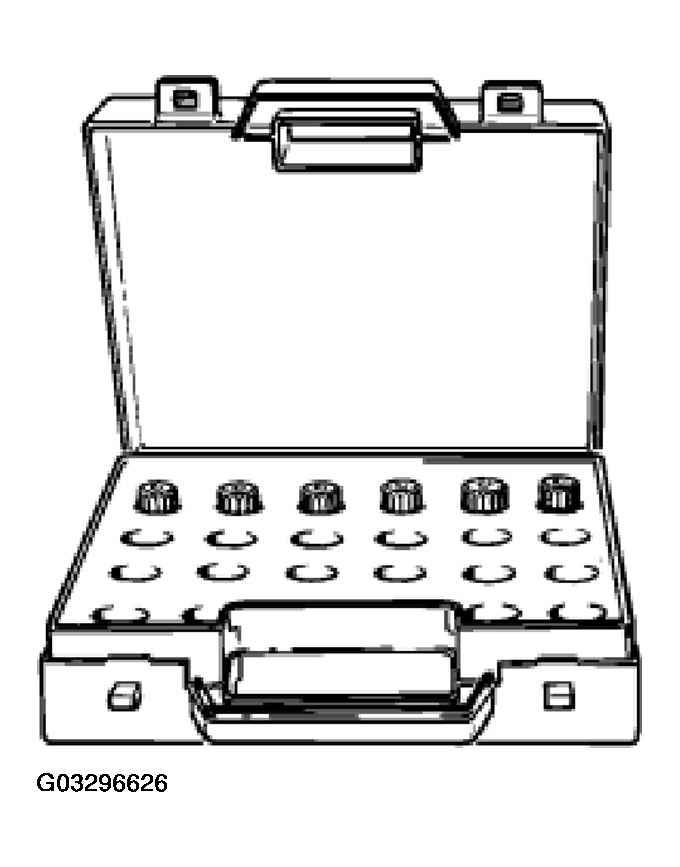

Fig 1: Identifying Set Of Wheel Stud Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

36 1 301 Code 11

36 1 302 Code 12

36 1 303 Code 13

36 1 304 Code 14

36 1 306 Code 16

36 1 307 Code 17

36 1 308 Code 18

36 1 309 Code 19

36 1 311 Code 20

36 1 312 Code 31

Note: Replaced by 36 1 324, 12/2004

36 1 313 Code 32

Note: Replaced by 36 1 325, 12/2004

36 1 314 Code 33

Note: Replaced by 36 1 326, 12/2004

36 1 315 Code 34

Note: Replaced by 36 1 327, 12/2004

36 1 316 Code 35

Note: Replaced by 36 1 328, 12/2004

36 1 317 Code 36

Note: Replaced by 36 1 329, 12/2004

36 1 318 Code 37

Note: Replaced by 36 1 331, 12/2004

36 1 319 Code 38

Note: Replaced by 36 1 332, 12/2004

36 1 321 Code 39

Note: Replaced by 36 1 323 Code 30, 12/2004

36 1 322 Code 40

Note: Replaced by 36 1 333, 12/2004

36 1 305 Code 15
