36 1 030 Tester
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Note: For measuring vertical and lateral runout of wheels
Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1
SI number: 1 11 00(594)
Order number: 36 1 030
Tester

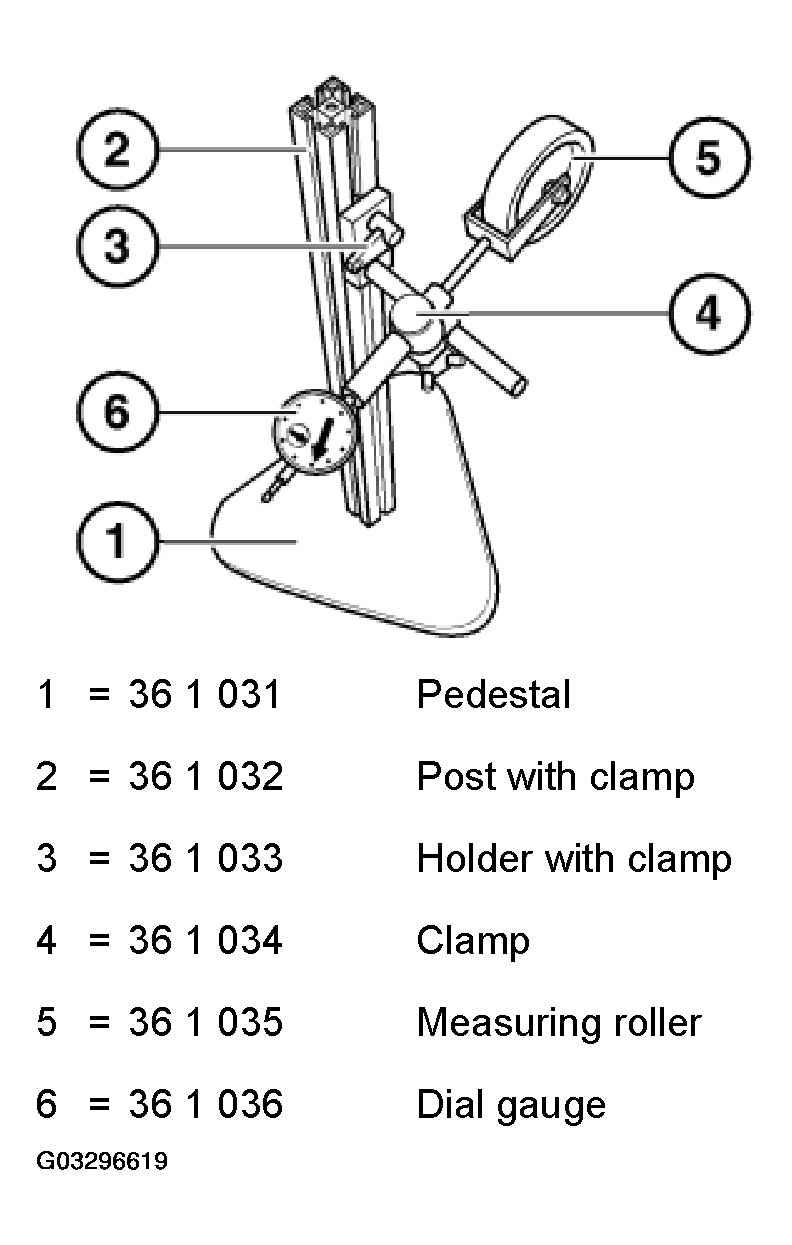

Consisting of:
1 = 36 1 031 Pedestal
2 = 36 1 032 Post with clamp
3 = 36 1 033 Holder with clamp
4 = 36 1 034 Clamp
5 = 36 1 035 Measuring roller
6 = 36 1 036 Dial gauge
