34 5 100 Bending fixture

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2006 BMW 550i, 2006 BMW 530i, and 2005 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For brake lines

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90

Storage location: A28

Order number: 34 5 100

Bending fixture

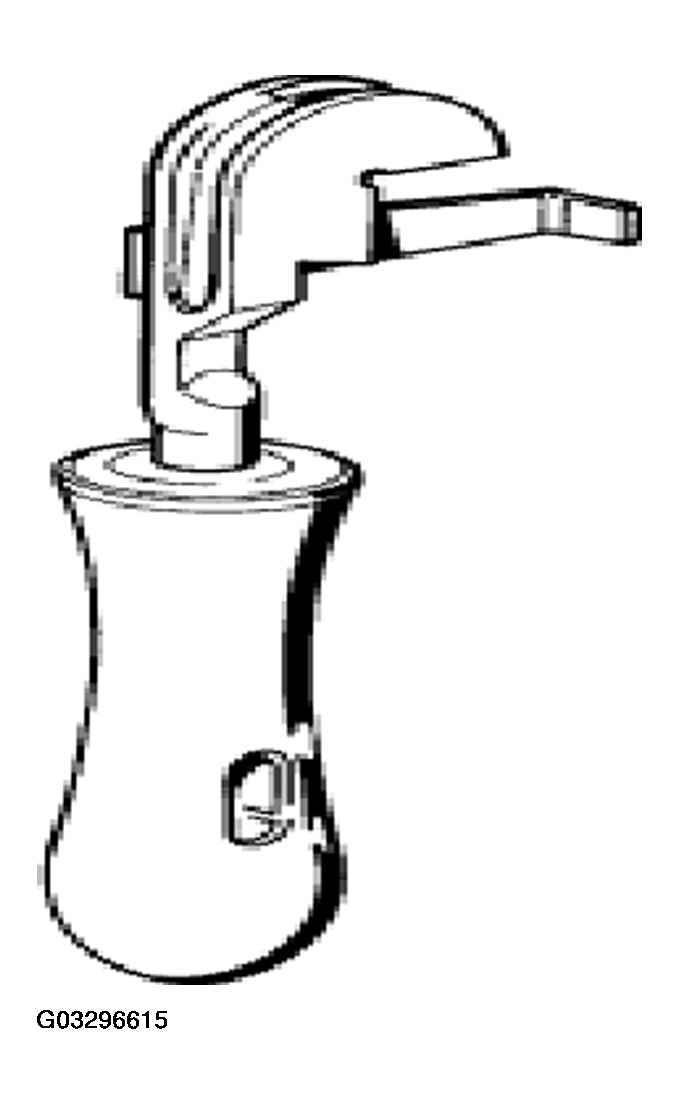

Fig 1: Identifying Bending Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
