34 1 050 Fixture

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2006 BMW 550i, 2006 BMW 530i, and 2005 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For turning back brake piston when fitting new brake pads, disc brakes front and rear

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90

Order number: 34 1 050

Fixture

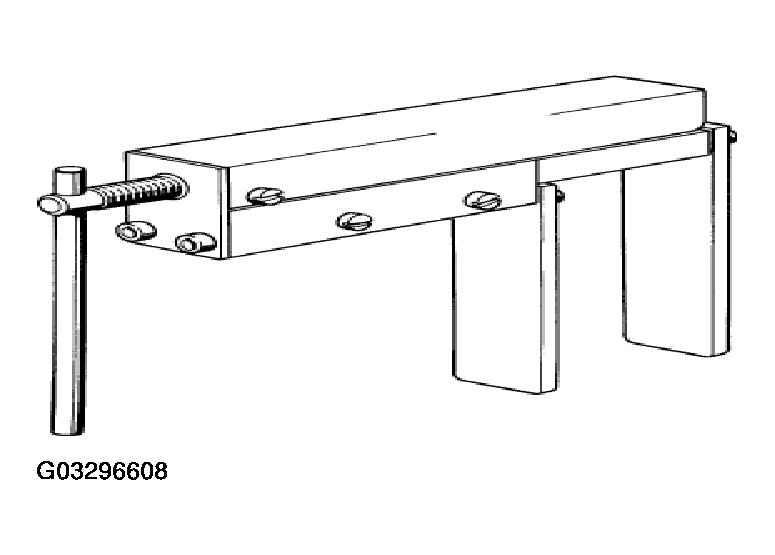

Fig 1: Identifying Fixture
G03296608Courtesy of BMW OF NORTH AMERICA, INC.
