26 1 300 Inclination angle measuring device

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 550i, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For determining bending angle of propeller shaft

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, RR1

Order number: 26 1 300

Inclination angle measuring device

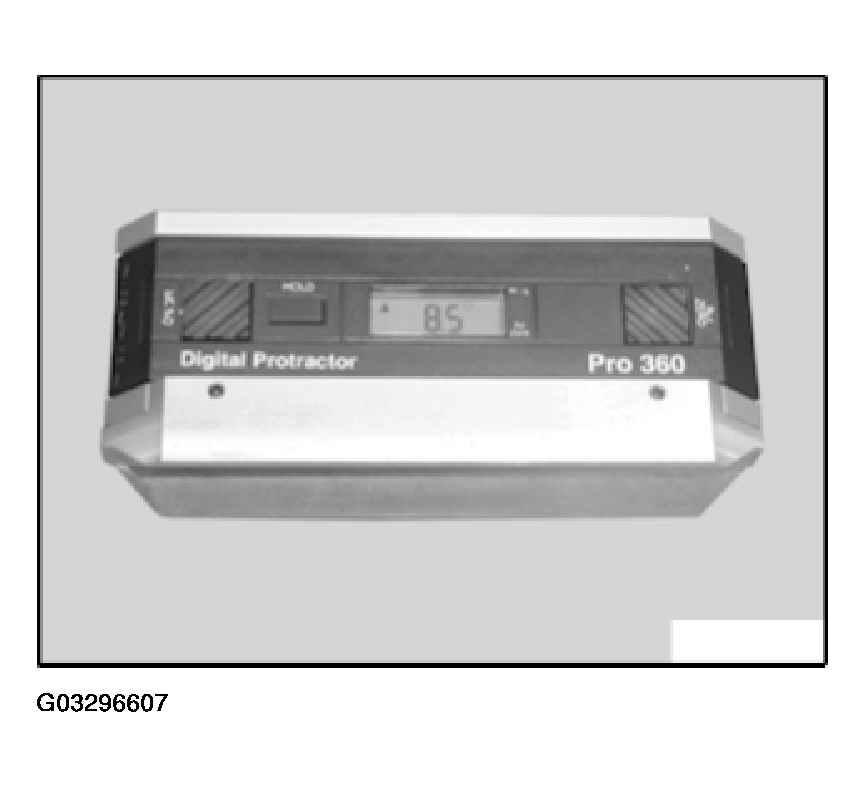

Fig 1: Identifying Inclination Angle Measuring Device
G03296607Courtesy of BMW OF NORTH AMERICA, INC.
