17 2 010 Set of adapters

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For oil dispensers for flushing oil coolers of automatic transmissions

Transmission: A4S 310R, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 440Z, A5S 560Z, GA6 HP19Z, GA6 HP26Z, GA6 HP32Z

SI number: 1 12 96(103)

Order number: 17 2 010

Set of adapters

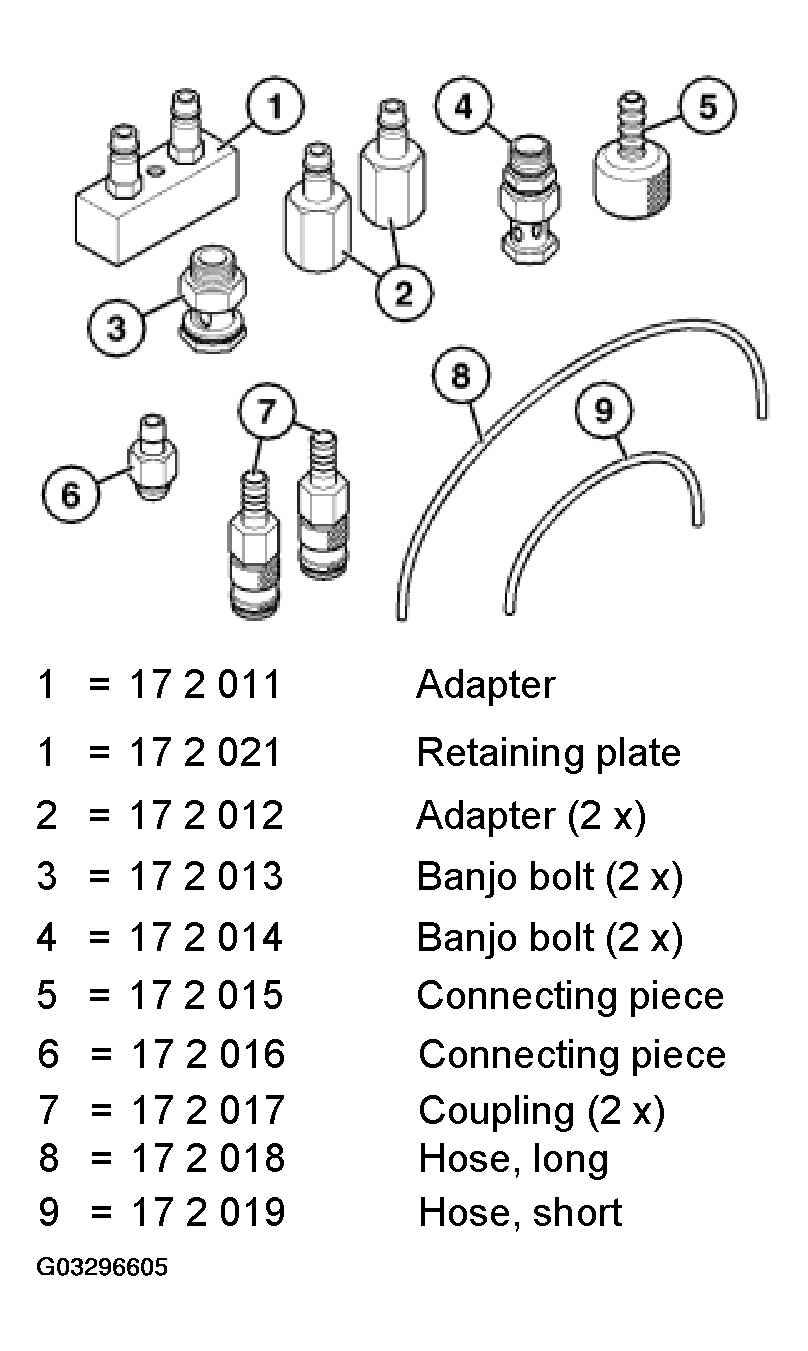

Fig 1: Identifying Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 17 2 011 Adapter

Note: For connecting oil cooler lines to oil dispensing unit - transmission: A5S 310Z, A5S 560Z, A5S 325Z

In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019

1 = 17 2 021 Retaining plate

Note: For Adapter 17 2 011 - transmission: A5S 325Z

2 = 17 2 012 Adapter (2 x)

Note: For connecting oil cooler lines to oil dispensing unit - transmission: A4S 310R

In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 01, 17 2 018, 17 2 019

3 = 17 2 013 Banjo bolt (2 x)

Note: M18x1.5 thread with nut and seal for connecting oil cooler lines to oil dispensing unit - transmission: A5S 440Z

In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019

4 = 17 2 014 Banjo bolt (2 x)

Note: M16x1.5 thread with nut, seal and threaded piece for connecting oil cooler lines to oil dispensing unit - transmission: A5S 300J

In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019

5 = 17 2 015 Connecting piece

Note: For Tecalemit oil dispensing unit

6 = 17 2 016 Connecting piece

Note: For Horn oil dispensing unit

7 = 17 2 017 Coupling (2 x)

8 = 17 2 018 Hose, long

9 = 17 2 019 Hose, short
