17 0 130 Set of adapters

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 17 0 101, 17 0 102

Note: or connecting adapters from 17 0 000 to pump 17 0 101 and hose 17 0 102.

SI number: 01 07 02 (884)

Order number: 17 0 130

Set of adapters

Consisting of:

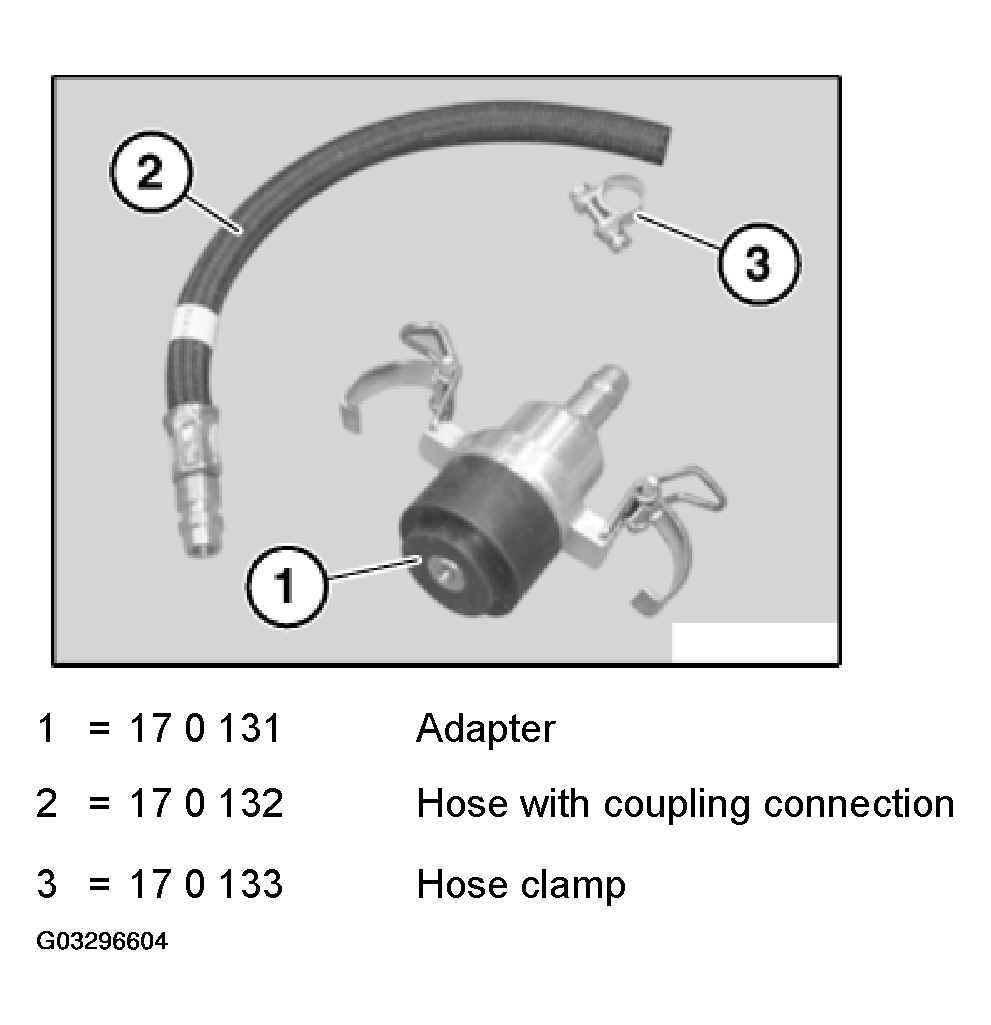

Fig 1: Identifying Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 17 0 131 Adapter

Note: For connecting pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000

2 = 17 0 132 Hose with coupling connection

Note: For connecting pump 17 0 101 to adapter 17 0 007

3 = 17 0 133 Hose clamp

Note: For hose 17 0 132
