Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking engine cooling system for water leaks. For checking radiator cap.

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1 Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

SI number: 01 07 02 (884)

Order number: 17 0 100

Tester

Consisting of:

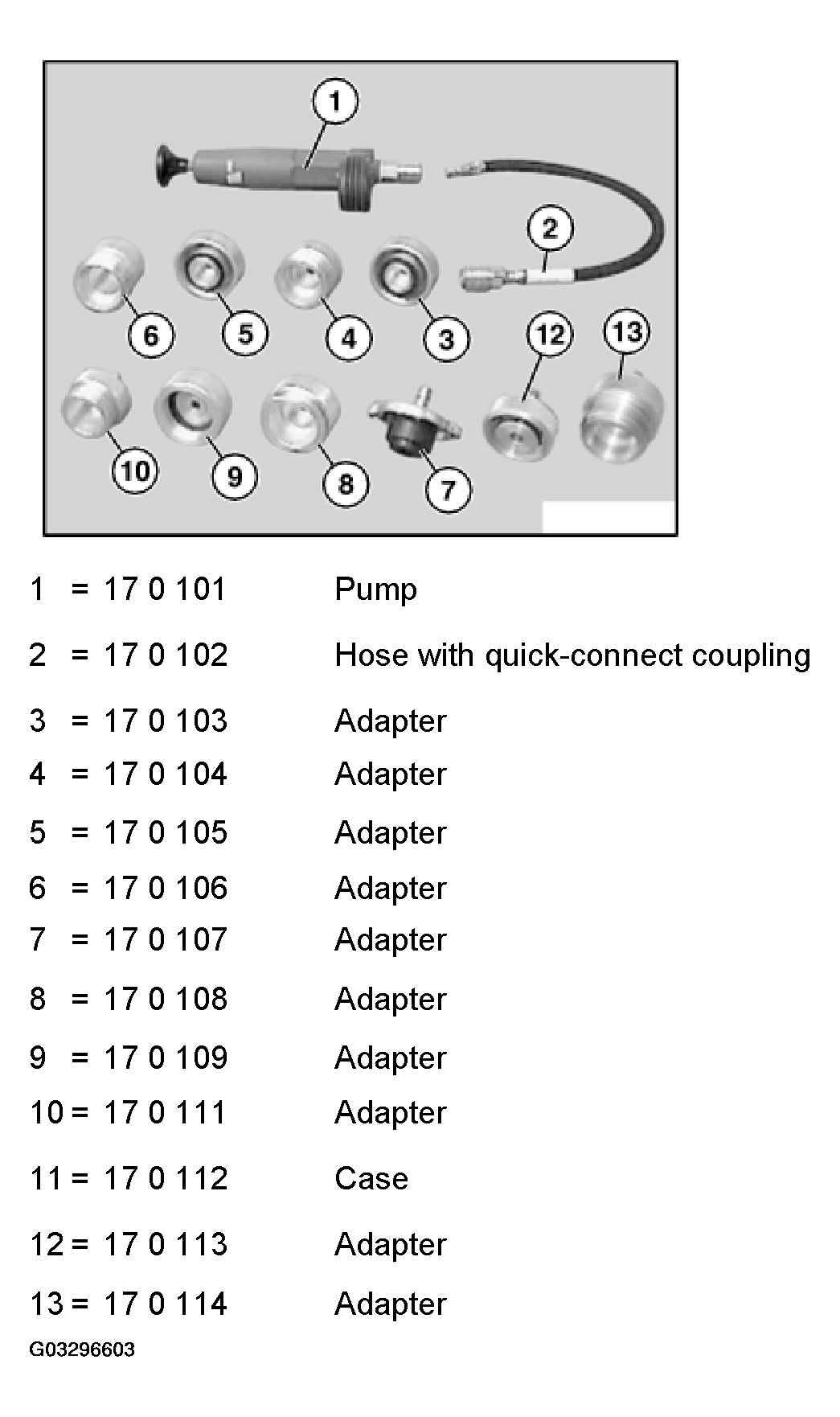

Fig 1: Identifying Tester

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 17 0 101 Pump

2 = 17 0 102 Hose with quick-connect coupling

3 = 17 0 103 Adapter

Note: For radiator cap (normal thread)

4 = 17 0 104 Adapter

Note: For radiator cap (normal thread)

5 = 17 0 105 Adapter

Note: For radiator cap (sawtooth thread)

6 = 17 0 106 Adapter

Note: For radiator cap (sawtooth thread)

7 = 17 0 107 Adapter

Note: For radiator cap R50/W10

8 = 17 0 108 Adapter

Note: For radiator cap R50/W10

9 = 17 0 109 Adapter

Note: For radiator connection R53/W11, R50/W17 Adapter corresponds to 17 0 051

10 = 17 0 111 Adapter

Note: For radiator cap R53/W11, R50/W17 Adapter corresponds to 17 0 052

11 = 17 0 112 Case

12 = 17 0 113 Adapter

Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988)

13 = 17 0 114 Adapter

Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988)
