17 0 000 Tester

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking cooling system for leaks and function of pressure relief valve in radiator cap. Replaced by 17 0 100

Storage location: A43, C17

Order number: 17 0 000

Tester

Consisting of:

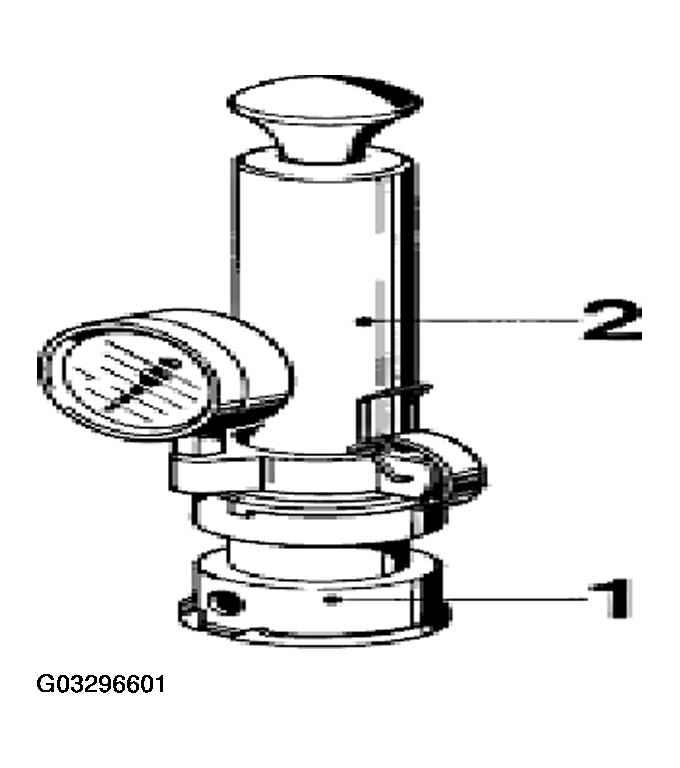

Fig 1: Identifying Tester

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 17 0 001 Adapter

Note: For checking pressure relief valve in radiator cap/model series: all, except E28

2 = 17 0 002 Tester without adapter

Note: Pressure range 0...2.5 bar/model series: all, except E28

3 = 17 0 003 Screw neck

Note: For screw-on radiator caps (normal thread)/ model series: E28, E30, E31, E32 Engine: all, except M51

4 = 17 0 004 Adapter

Note: For screw-on radiator caps (normal thread)/model series: E28, E30, E32/Engine: M51

5 = 17 0 005 Screw neck

Note: For screw-on radiator caps (buttress thread)/model series: E31, E32, E34, E36, E38, E39

7 = 17 0 007 Adapter

Note: For checking expansion tank cap/model series: E31, E32, E34, E36, E38, E39

8 = 17 0 008 Pressure hose

9 = 17 0 009 Adapter for radiator expansion tank

Note: Model series: E36/Model: M3 US Engine W10
