Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For measuring oil and fuel pressures

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Storage location: A16, B16

SI number: 1 12 94 (859)

Order number: 13 6 050

Set of adapters for BMW DIS

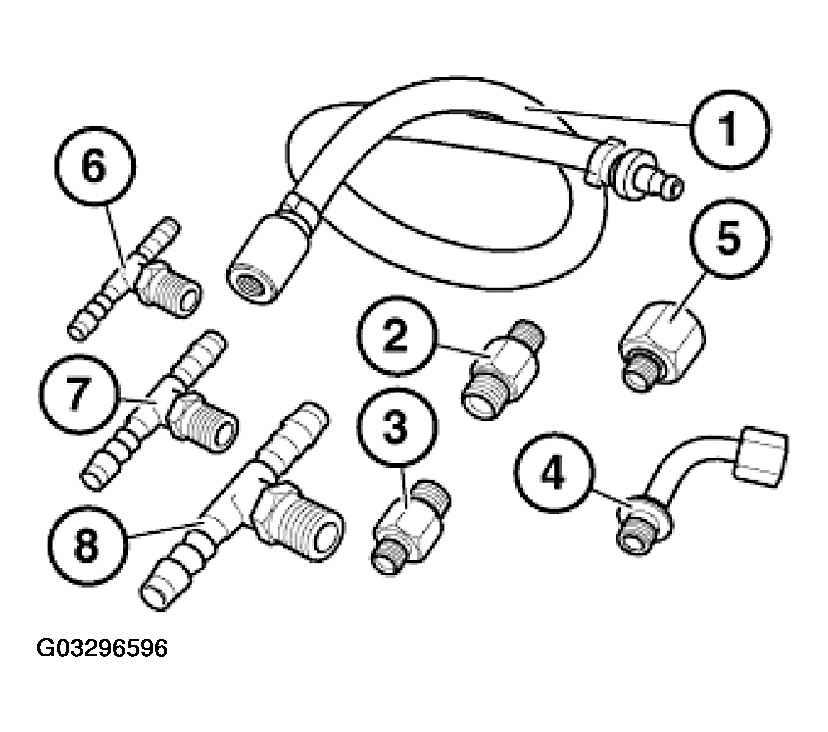

Fig 1: Identifying Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 13 6 051 Connecting hose

Note: For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS

2 = 13 6 052 Reducer

Note: For pipe elbows 24 0 023, 24 0 024, 24 0 140

In conjunction with: 13 6 051

3 = 13 6 053 Reducer for adapter 16 1 300

In conjunction with: 13 6 051

4 = 13 6 054 Pipe elbow

In conjunction with: 13 6 051, 11 4 050

5 = 13 6 055 Reducer for T-pieces 13 6 056 and 13 6 057

In conjunction with: 13 6 051

6 = 13 6 056 T-piece for 6 mm dia. line

7 = 13 6 057 T-piece for 8 mm dia. line
