13 5 280 Plugs for fuel lines
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Note: For sealing off fuel lines when removing and installing engine - Applicable to M62 only fitted in E39/M52 only fitted in E38/S50B32 only fitted in E36/N62 only fitted in E65/M54 in E83.
Series: E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, R50, R52, R53, RR1
Engine: M52, M54, M62, N40, N42, N62, N73, S50B32, W10, W11
Storage location: B16
SI number: 1 18 96 (163)
Order number: 13 5 280
Plugs for fuel lines

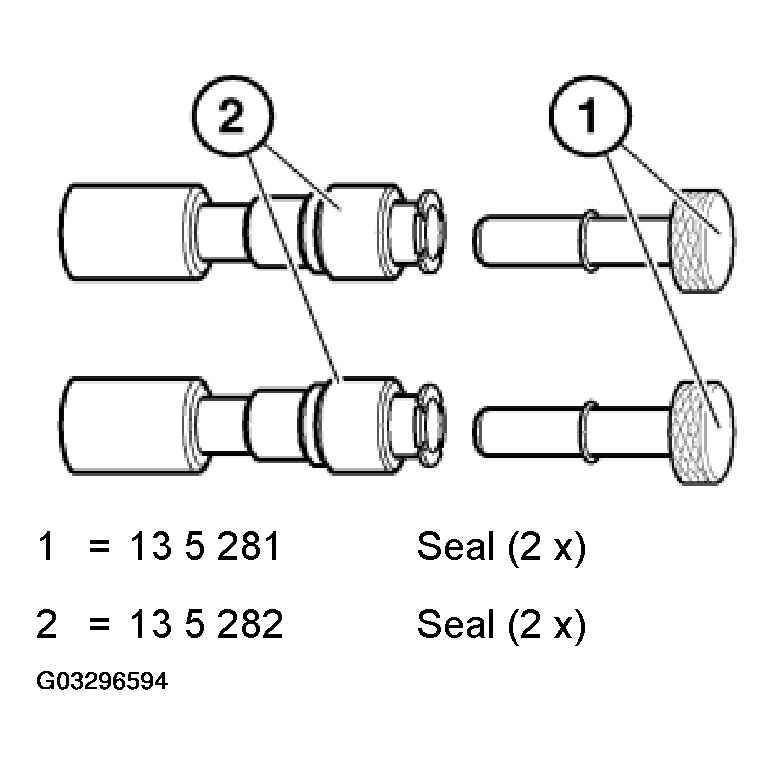

Consisting of:
1 = 13 5 281 Seal (2 x)
Note: For sealing quick couplings
2 = 13 5 282 Seal (2 x)
Note: For sealing fuel lines
