13 3 060 Fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Order number: 13 3 060

Fixture

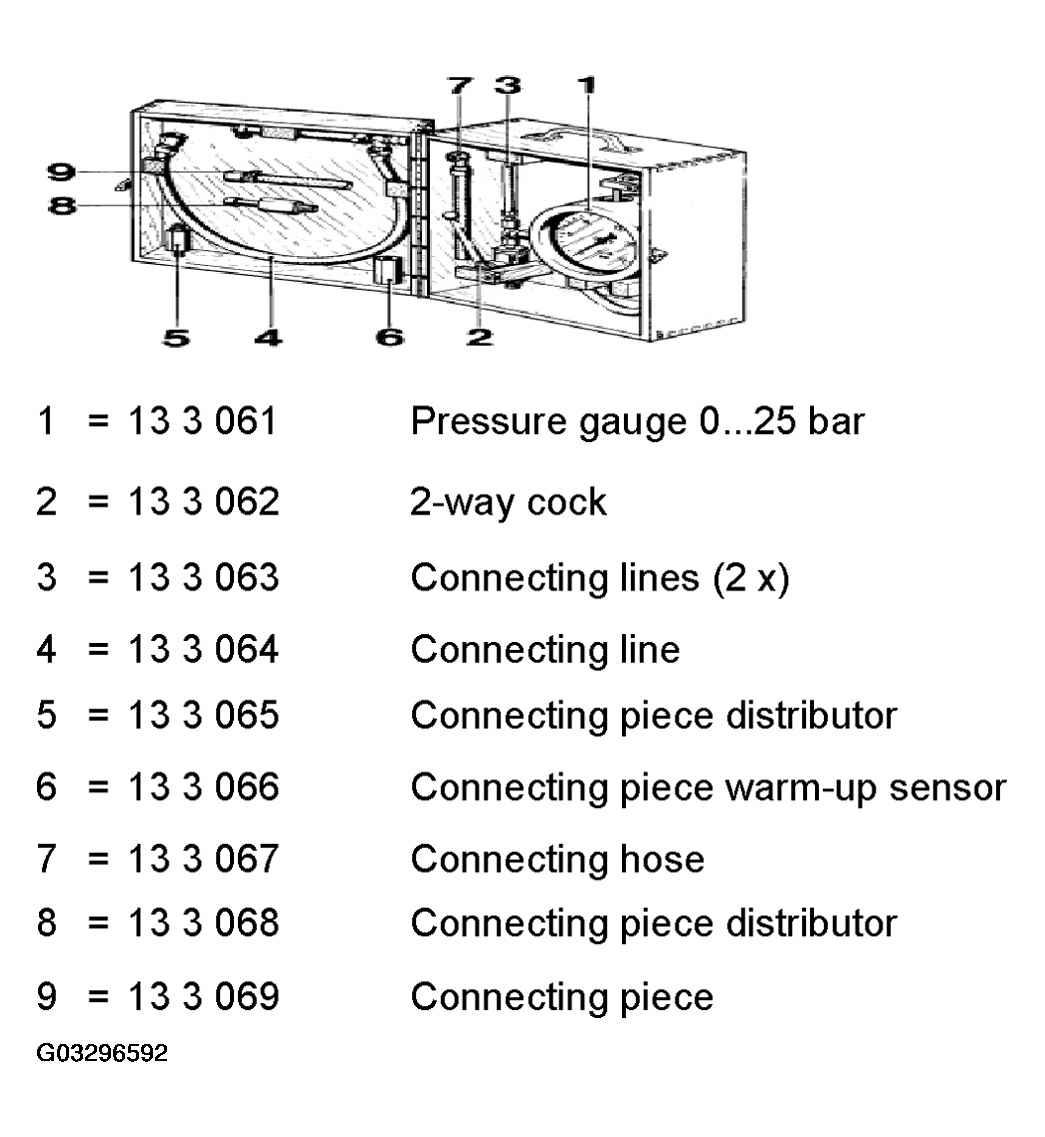

Fig 1: Identifying Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 13 3 061 Pressure gauge 0...25 bar

2 = 13 3 062 2-way cock

Note: Engine: All, except S50, S54, N73

3 = 13 3 063 Connecting lines (2 x)

Note: For fuel and oil pressure testing

4 = 13 3 064 Connecting line

Note: Mit T-piece for L-Jetronic All except N73

5 = 13 3 065 Connecting piece distributor

Note: All except N73

6 = 13 3 066 Connecting piece warm-up sensor

Note: All except N73

7 = 13 3 067 Connecting hose

Note: For checking fuel pump delivery All except N73

In conjunction with: 13 3 020

8 = 13 3 068 Connecting piece distributor

Note: All except N73

In conjunction with: BMW SERVICE TESTER

9 = 13 3 069 Connecting piece

Note: For warm-up sensor with hose all except N73

In conjunction with: BMW SERVICE TESTER
