Minimum Set: Measuring & Testing Equipment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For engines with rod-type ignition coils for measuring secondary voltage

Engine: M54, M56, N40, N42, N46, N62, N73, S54

Storage location: F 104

SI number: 2 01 01 (671)

Order number: 12 7 050

Adapter lead

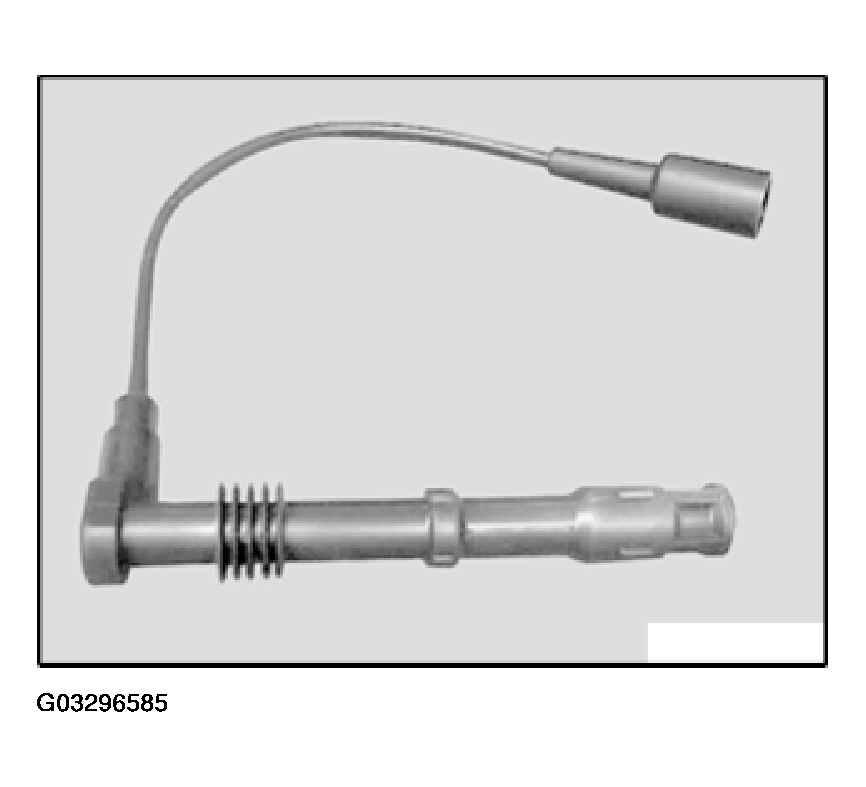

Fig 1: Identifying Adapter Lead
G03296585Courtesy of BMW OF NORTH AMERICA, INC.
