Minimum set: Measuring and testing equipment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: 61 1 459
Note: For diagnosis and troubleshooting on DME and transmission control - from model year 98
Engine: M54, M56, M62, M73, N40, N42, N46, N62, N73
Storage location: N 201, N 202, N 203, N 204
SI number: 2 04 97(248)
Order number: 12 1 300

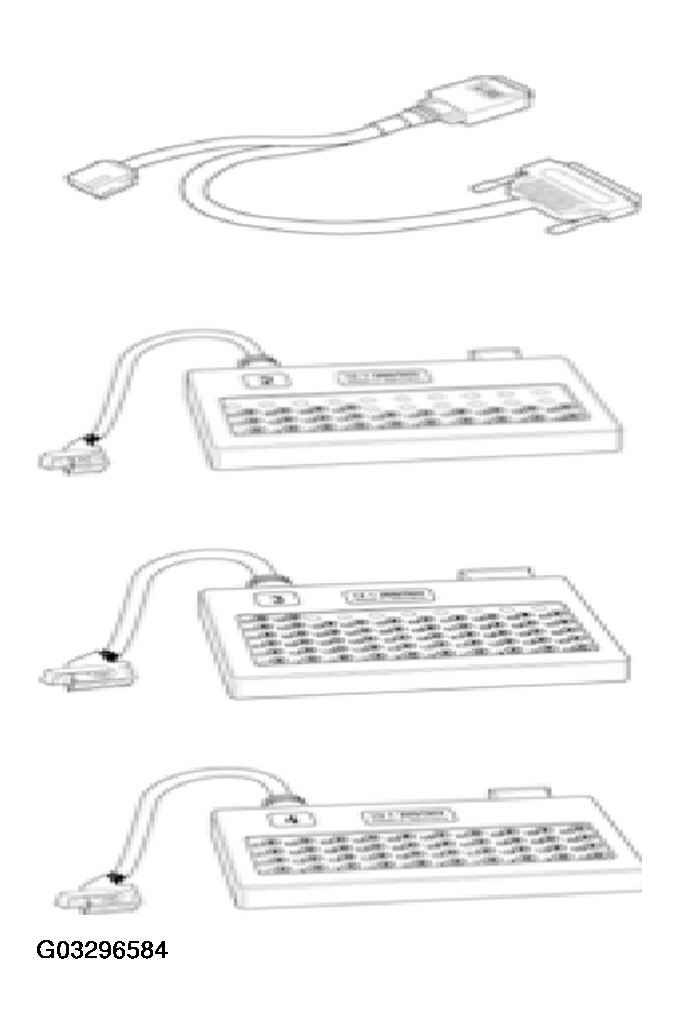

Adapter set for 134-pin module plug
Consisting of:
12 1 301 Adapter lead 9-pin
12 1 302 Measurement module 24-pin
12 1 303 Measurement module 40-pin
12 1 304 Measurement module 52-pin
Note: Supplied from 08/2004 in conjunction with 12 1 305 (zero-coded cover cap for new SGM control unit in E6x)
