Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: Assembly stand 00 1 450

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

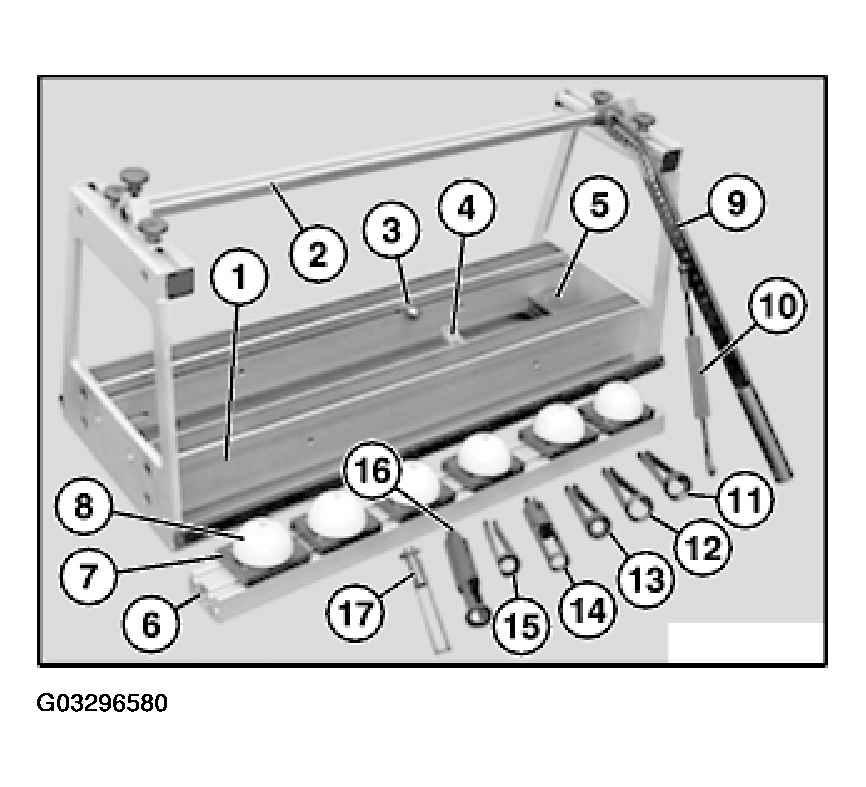

Fig 1: Identifying Cylinder Head Expander Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 03 02 (833)

Order number: 11 9 000

Cylinder head expander tool

Consisting of:

1 = 11 9 001 Fixture

2 = 11 9 002 Rod

3 = 11 9 003 Sliding block with M10 thread

4 = 11 9 004 Tab

5 = 11 9 005 Quick tensioner

6 = 11 9 006 Aluminum profile insert

7 = 11 9 007 Slide

8 = 11 9 008 Profile plastic part

9 = 11 9 009 Lever

10 = 11 9 011 Hook

11 = 11 9 012 Valve spring cage

Note: Engine M41, M51, S50

12 = 11 9 013 Valve spring cage

Note: Engine M43, M73

13 = 11 9 014 Valve spring cage

Note: Engine M44, M52, M54, M56, M62, S52, S54, S62

14 = 11 9 015 Valve spring cage

Note: Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73

15 = 11 9 016 Valve spring cage

Note: Engine M21, M40

16 = 11 8 421 Valve spring cage

Note: Engine: W10, W11, W17

18 = 11 9 017 Valve spring cage

Note: Engine N52
