11 8 040 Engine support plate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 1 450

Note: For securing engine on assembly stand

Engine: M41, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, S50B30, S50B32, S54

SI number: 1 09 94(839)

Order number: 11 8 040

Engine support plate

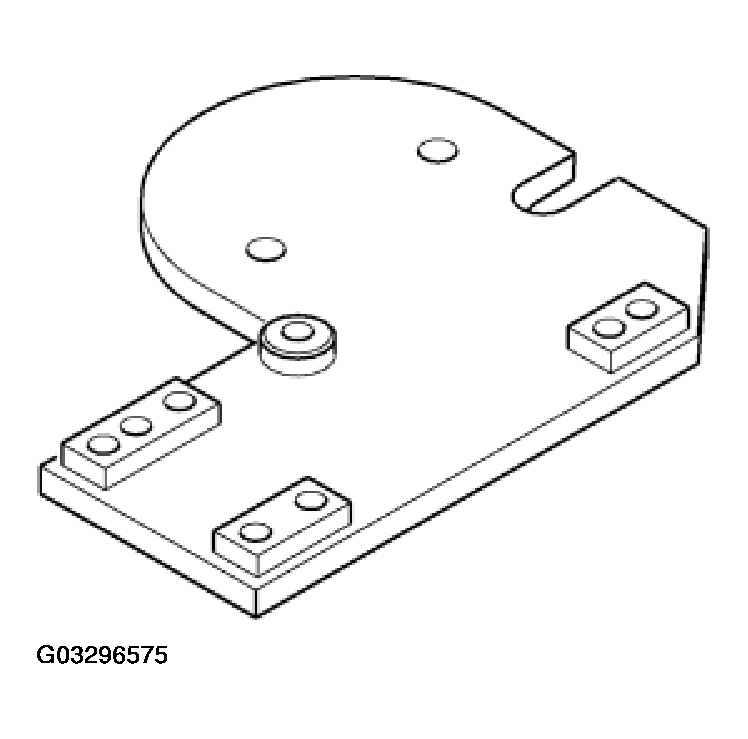

Fig 1: Identifying Engine Support Plate
G03296575Courtesy of BMW OF NORTH AMERICA, INC.
