Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: Torque wrench 3/8" connection

Note: For loosening and tightening fan wheel

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M60, M62, M70, M73, M88, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62

Storage location: A11, B11

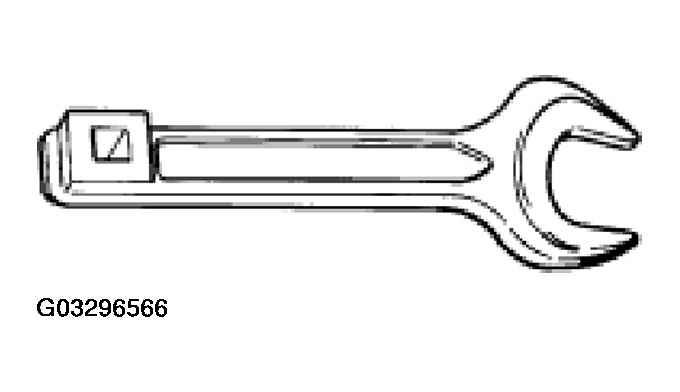

Fig 1: Identifying Open-Ended Spanner WAF 32

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 01 87(670)

Order number: 11 5 040

Open-ended spanner WAF 32
