Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For installing connecting rods with pistons. Note: With the phase-in of engine S50B32 the guide mandrels have been revised and adapted to the new connecting rods.

Engine: M44, M52, M52TU, M54, M56, S50B30, S50B32, S62

Storage location: B2, C2

SI number: 1 12 92(606)

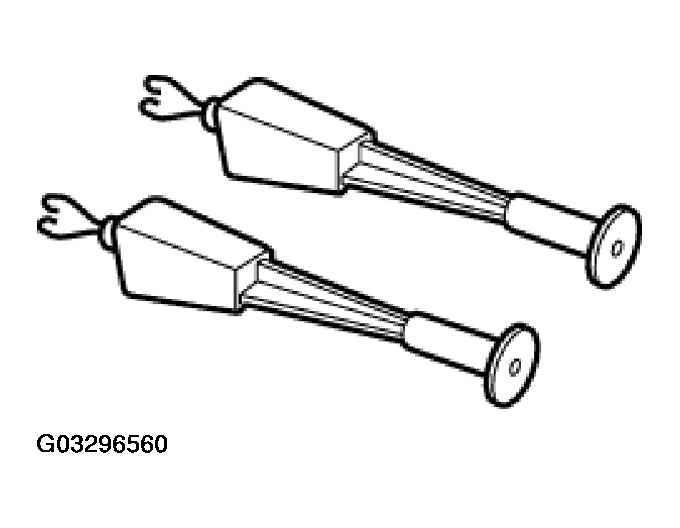

Fig 1: Identifying Guide Mandrel

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 11 3 480

Guide mandrel (2)
