Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with:12 6 410

Note: For checking function of VANOS adjustment unit

Engine: M50, M52, M52TU, M54, M56, N73

Storage location: B10

SI number: 1 08 92 (555)

Order number: 11 3 450

Compressed air connection

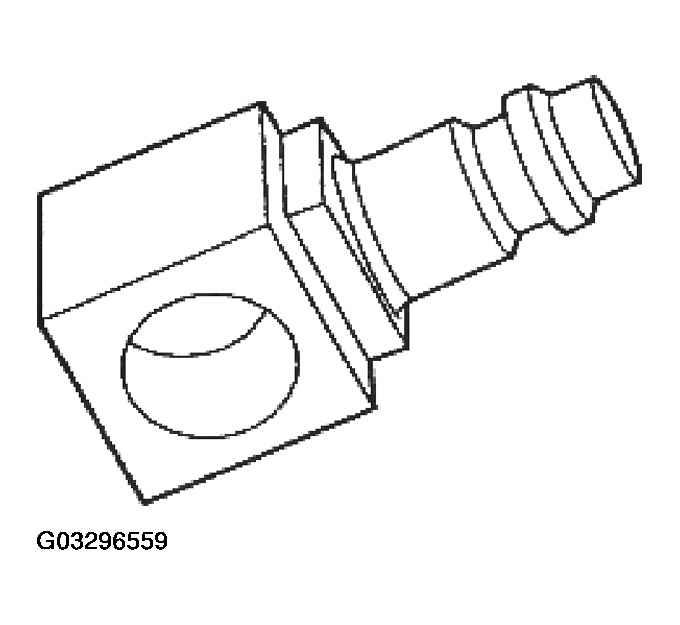

Fig 1: Identifying Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.
