Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For locking camshaft in position when adjusting timing

Engine: M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US

Storage location: A11

SI number: 1 05 89(099)

Order number: 11 3 240

Locking fixture

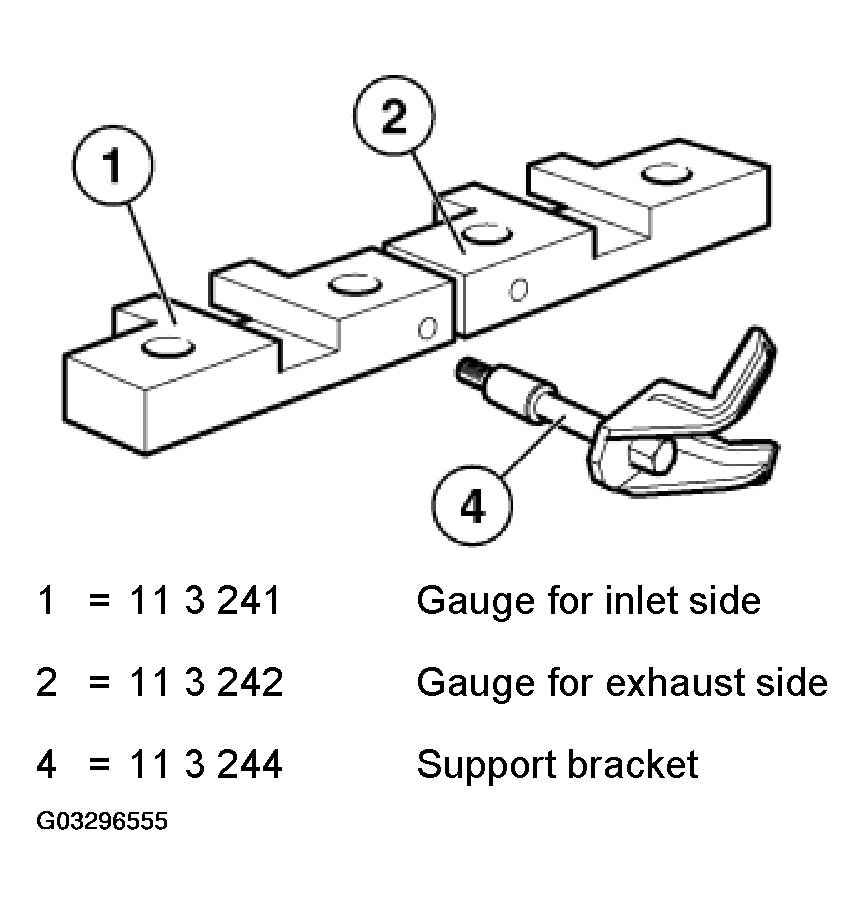

Fig 1: Identifying Locking Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 3 241 Gauge for inlet side

2 = 11 3 242 Gauge for exhaust side

4 = 11 3 244 Support bracket

Note: For securing camshaft marking fixture on cylinder head
