Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For fitting valve stem seals, 6 mm diameter

Engine: M41, M42, M44, M47, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, S54, S62

Order number: 11 1 960

Assembly sleeves

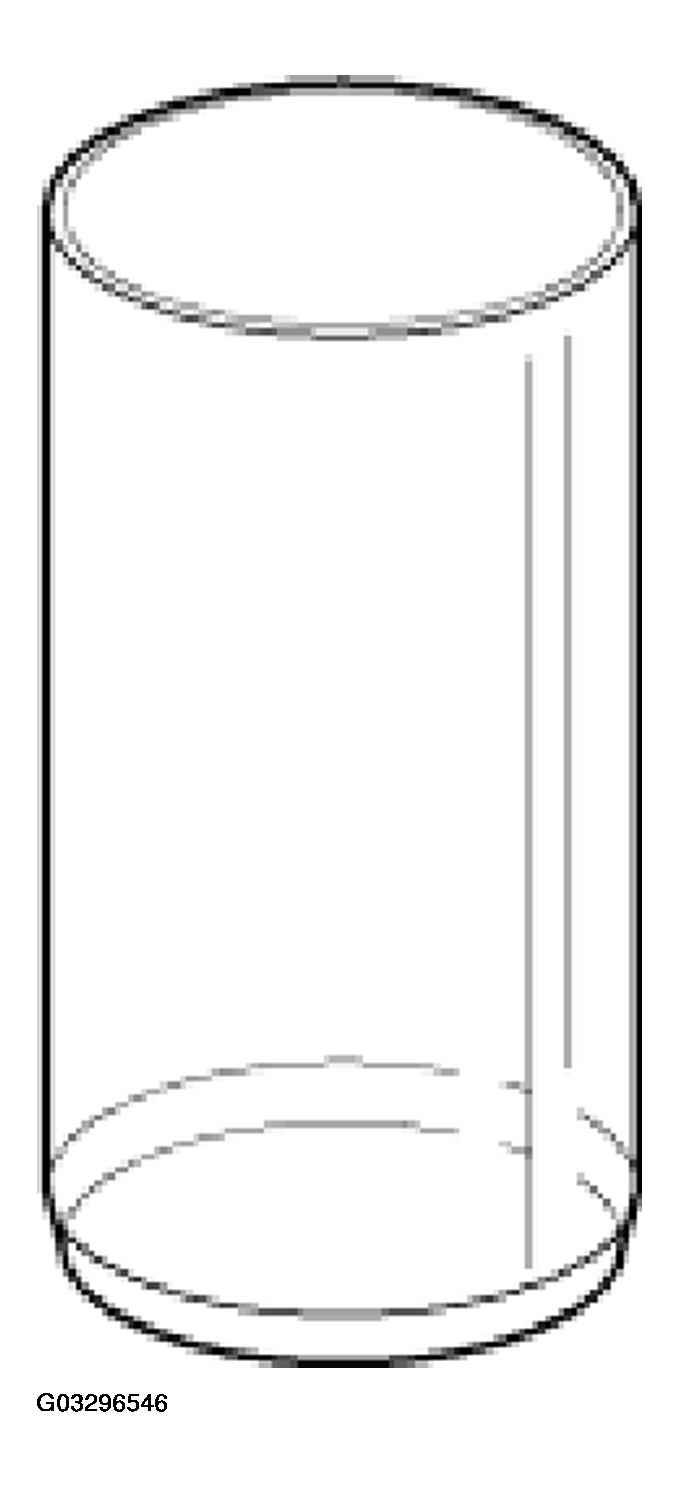

Fig 1: Identifying Assembly Sleeves
G03296546Courtesy of BMW OF NORTH AMERICA, INC.
