11 0 070 Engine hoist

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing and installing engines

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57T2, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

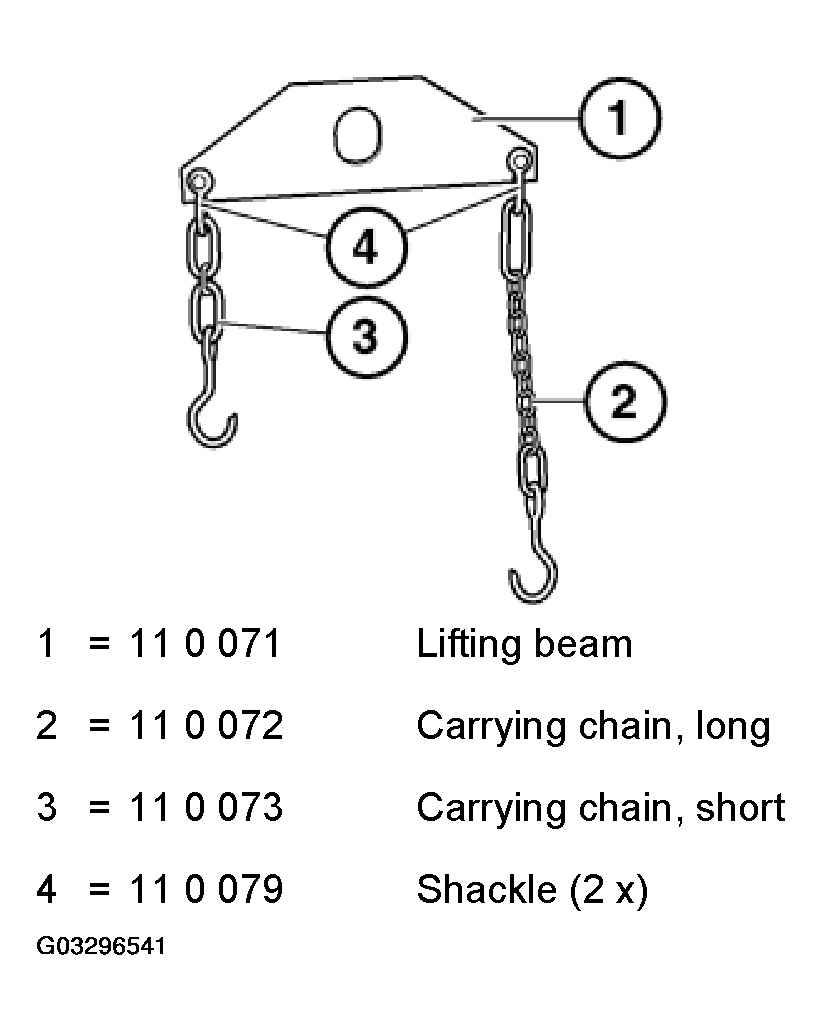

Fig 1: Identifying Engine Hoist

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 16 96 (107)

Order number: 11 0 070

Engine hoist

Consisting of:

1 = 11 0 071 Lifting beam

2 = 11 0 072 Carrying chain, long

3 = 11 0 073 Carrying chain, short

4 = 11 0 079 Shackle (2 x)
