Minimum Set: Mechanical Tools
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Engine: M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M47TU, M50, M51, M52, M54, M57, M57D25, M57D30, M57TU, N52, N62, N73, S38, S50B30, S50B32, S50US, S85
SI number: 1 13 94 (888)
Order number: 11 0 020

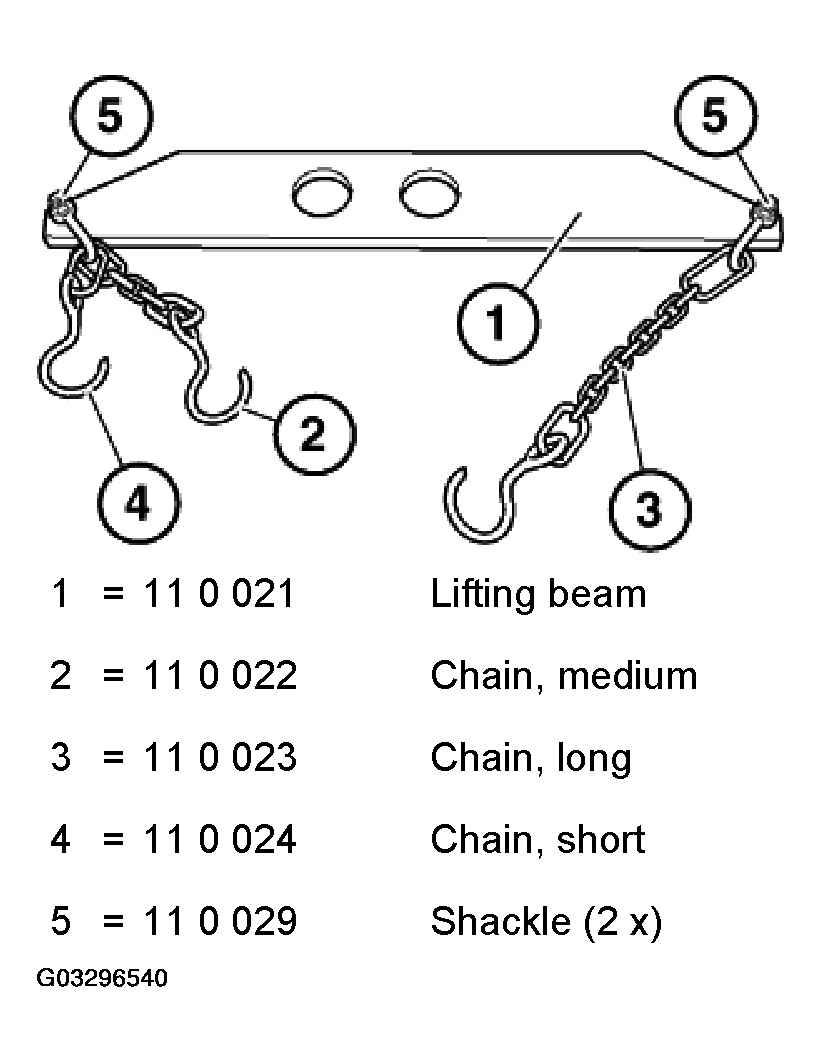

Engine hoist for removing and installing engines
Consisting of:
1 = 11 0 021 Lifting beam
2 = 11 0 022 Chain, medium
3 = 11 0 023 Chain, long
4 = 11 0 024 Chain, short
5 = 11 0 029 Shackle (2 x)
