Minimum set: Mechanical tools

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

Note: For withdrawing radial seals 00 5 011 for E90

Series: E12, E21, E23, E24, E28, E30, E30/C, E30TOU, E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

Storage location: B26

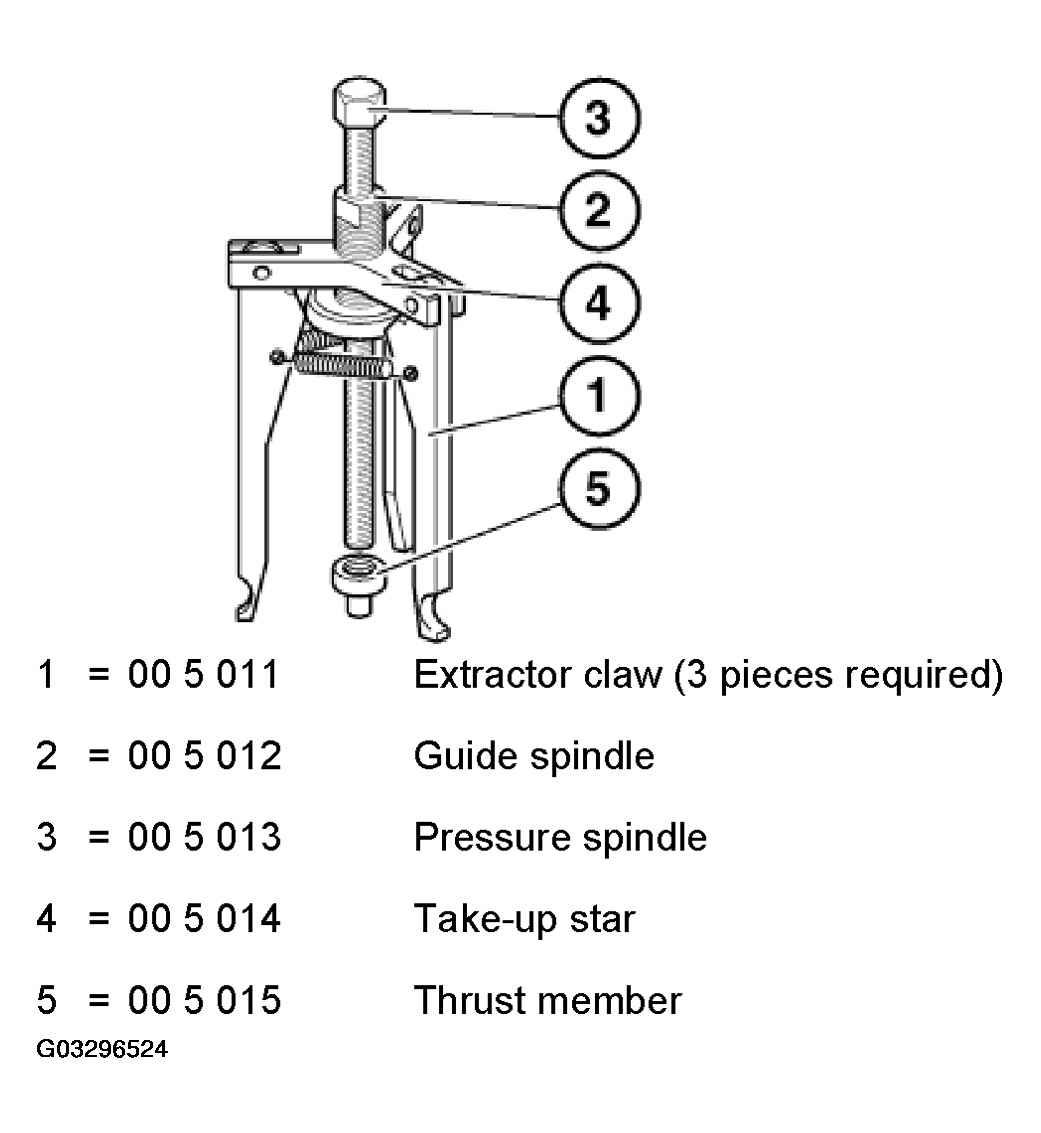

Fig 1: Identifying Universal Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 00 5 010

Universal puller

Consisting of:

1 = 00 5 011 Extractor claw (3 pieces required)

2 = 00 5 012 Guide spindle

3 = 00 5 013 Pressure spindle

4 = 00 5 014 Take-up star

Note: For taking up extractor claw

5 = 00 5 015 Thrust member
