00 2 040 Basic take-up fixture

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, and 2006 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 030, 33 3 270, 33 3 290, 33 3 300, 33 4 220, 33 4 230

Note: For removing and installing rear axle carrier, without pillar guide and lift hoist

Series: E31, E32, E32/3, E34, E34TOU, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36TOU, E38, E38/3, E39, E39PL, E39TOU, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1

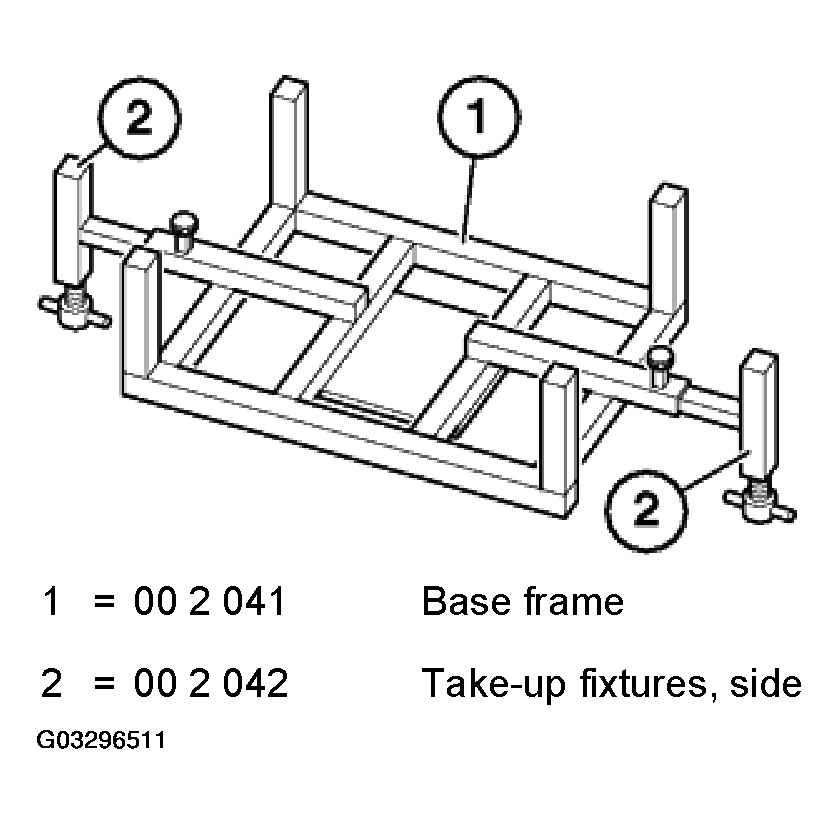

Fig 1: Identifying Basic Take-Up Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 05 90 (207)

Order number: 00 2 040

Basic take-up fixture

Consisting of:

1 = 00 2 041 Base frame

2 = 00 2 042 Take-up fixtures, side
