Tilt Adjustment

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2006 BMW 530i, 2006 BMW 525i, 2006 BMW 330xi, 2006 BMW 330i, and 2006 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

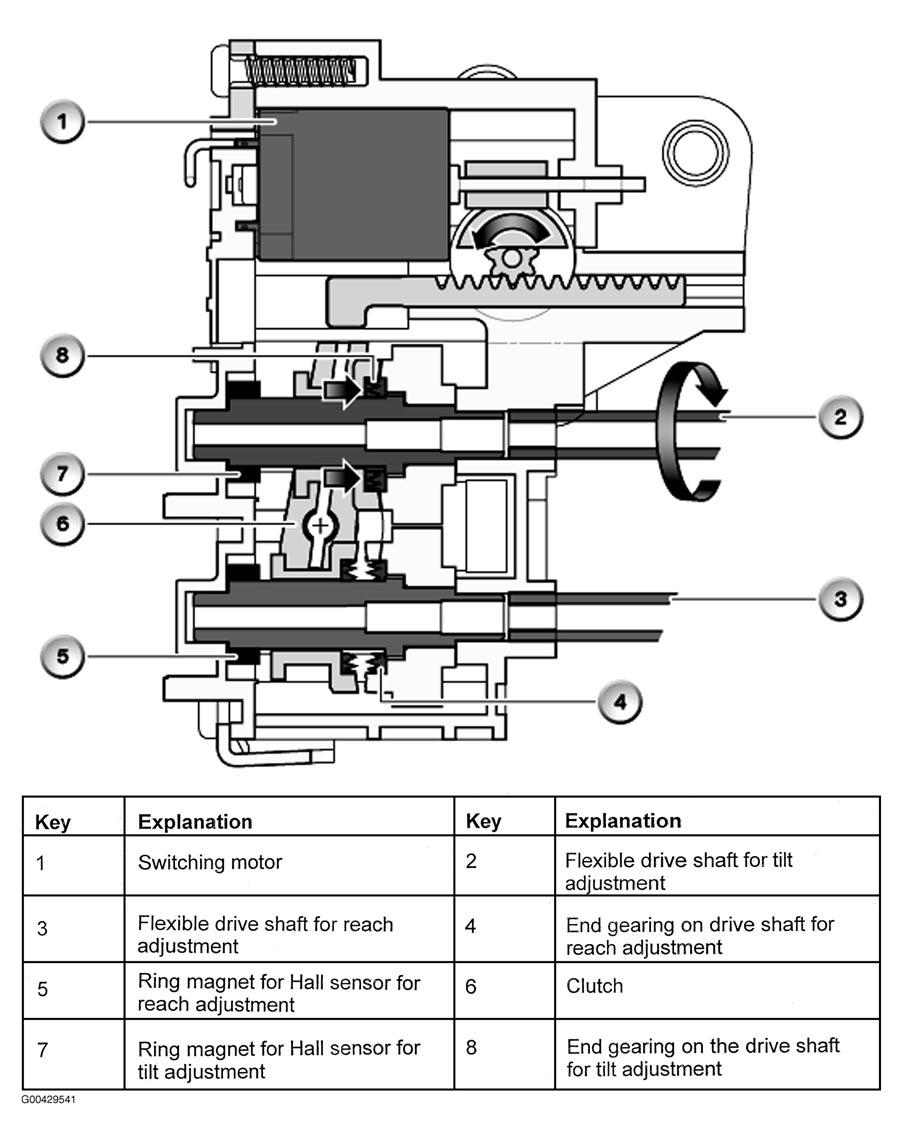

Fig 1: Adjustable Steering Column - Tilt Adjustment
G00429541Courtesy of BMW OF NORTH AMERICA, INC.

The switching motor turns anticlockwise. This moves the clutch to the right. The clutch closes the end gearing on the drive shaft for tilt adjustment. The flexible drive shaft for tilt adjustment is driven.
